Oil sources and accumulations in complex oil reservoirs of superimposed basins are difficult to identify and recover because of multiple kitchens and multistage charging processes. Constraining the oil sources and characterizing their accumulation patterns is a critical challenge. In this study, 46 crude oils from the Upper Wuerhe Formation, a widely distributed oil reservoir in the Mahu Sag of the Junggar Basin, NW China, are geochemically characterized to assess their sources and spatial distribution. These oils are divided into four groups: group I oils (characterized by high β-carotane and gammacerane concentrations, low C₂₁/C₂₃ and (C₁₉+ C₂₀)/C₂₃ tricyclic terpane ratios, and low Pr/Ph ratios); group II oils (characterized by low β-carotane and gammacerane concentrations, high C₂₁/C₂₃ and (C₁₉+ C₂₀)/C₂₃ tricyclic terpane ratios, and moderate Pr/Ph ratios); group III oils (very high Pr/Ph ratio (>3), the lowest β-carotane and gammacerane concentrations, and low tricyclic terpane concentration, but relatively high C₁₉ and C₂₀ tricyclic terpane abundance); and group IV oils (refered to here as geochemically hybrid, and inferred to be sourced from mixed P₁f and C/P₁j source rocks). The integration of oil-source correlation and geological framework indicates that oils generated from multiple kitchens are more likely to be near-sourced accumulations, providing a plausible example for oil accumulation in a complex oil reservoir of superimposed basin with several sets of kitchens and multistage oil charging history. The results show that multisource and multistage hydrocarbon accumulation is a common characteristic of prolific superimposed basins. The oil accumulation pattern must be established by carefully characterizing sources and charging processes to reduce the risk of exploration activities.

Keywords

Oil-source correlation molecular geochemistry multiple hydrocarbon kitchens near-source accumulation Junggar Basin

Introduction

The complex reservoir means that hydrocarbons are derived from multiple source rocks and have undergone multiple charging events in a superimposed petroliferous basin (Jackson, 2005; Liu, 2007; Wang et al., 2019). It is characterized by several sets of source-reservoir-cap assemblages and multicycle petroleum accumulations. Oil distribution varies regionally and is often mixed due to multistage oil charging from different sources (Pang et al., 2012). Oil sources and accumulation patterns in complex oil reservoir of superimposed basins have attracted significant attention in petroleum geology and geochemistry.

The Junggar Basin is a typical large petroliferous superimposed basin in northwestern China. Currently, two large oil provinces with an area of hundreds of kilometers have been found in Mahu Sag, a hydrocarbon-rich structure of the northwest margin of the basin (Jun et al., 2020; Li et al., 2020; Zhi et al., 2018, 2021). The Mahu Sag has four sets of source rocks and multiple sets of reservoirs of various types. The Upper Wuerhe Formation is a sandy conglomerate reservoir widely distributed south of the Mahu Sag, with a total of 6.1 billion tons of proved oil reserves and a potential oil-bearing area of approximately 1500 km², indicating great resource prospects and economic significance (Kuang et al., 2022). This oil reservoir is confirmed to resulted from multistage hydrocarbon charging of various source rocks (Cao et al., 2020).

Despite the discovery of significant hydrocarbons in the Upper Wuerhe Formation in the southern Mahu Sag, their sources remain controversial, and the spatial distribution of different genetic oils is poorly understood. There are different opinions regarding the sources of these oils in the study area. One opinion is that these oils are single sourced and mainly come from the Fengcheng Formation (P₁f) (Huang et al., 2016, 2022; Kuang et al., 2022; Tang et al., 2022), while another single-source view holds that they are mainly from the Lower Wuerhe Formation (P₂w) (Bian et al., 2019). In addition, other studies indicate that these oils are of mixed origin, with contributions from the Fengcheng Formation and the Lower Wuerhe Formation (Wang, 2001; Wang and Kang, 1999; Yu et al., 2017; Zhang et al., 2022; Zou et al., 2021). Mixed contributions from the Fengcheng Formation（P₁f）and the Carboniferous (C) and Jiamuhe Formation (P₁j) is also proposed in other studies (Ma et al., 2015). However, the four sets of potential source rocks in the study area have reached the mature hydrocarbon-generating stage in geological history, and they are both considered to have contributed to oil accumulation in the study area based on the comprehensive assessments of source rocks and geochemical analysis of crude oil in the reservoir (Cao et al., 2005, 2006; Tao et al., 2019). This current poor understanding of the sources of oils is mainly because the oils analyzed in the previous studies are in different confined areas and do not represent the actual distribution of crude oil in the study area. However, an adequate oil-source correlation was not measured because limited source rocks were penetrated during the early conventional petroleum exploration programs.

Extensive exploitation of the oils in the Upper Wuerhe Formation provides many crude oil samples covering the study area, and increasing unconventional petroleum exploration activity has led to an adequate geochemical investigation of many different source rocks. Here we conduct a comprehensive oil-source correlation in the study area. Our aim is not only to solve the source problem of crude oils in the Upper Wuerhe Formation, but also to examine the spatial distribution of different sourced oils, which can reflect their generation, migration, and accumulation characteristics. This, in turn, can provide a new perspective for hydrocarbon enrichment behavior in a typical superimposed basin.

In this study,we (a) correlated and inferred the provenance of Upper Wuerhe Formation crude oils in the southern Mahu Sag based on representative biomarker parameters and (b) characterize the spatial distribution of different sourced oils. In particular, we investigated the stratigraphic distribution of various source rocks to examine whether there is a positive oil-source correlation in the geological framework and whether they are likely to be near-source accumulated. Finally, we analyze the factors for different spatial occurrences of oils and establish accumulation models. We hope this study will provide a new perspective on the complex hydrocarbon accumulation behavior in superimposed basins with multiple sets of source rocks.

Geological setting

The Junggar Basin is a large superimposed prolific oil basin in northwestern China, with an area of approximately 1.3× 10⁵ km² (Cao et al., 2005). It developed on the Precambrian crystal basement (before 800 Ma) and a slightly metamorphic Paleozoic basement that went through four stages of tectonic evolution: (1) a foreland oceanic basin stage (Carboniferous-Middle Permian); (2) foreland continental basin stage (Late Permian); (3) an intracontinental depression basin stage (Triassic-Cretaceous); and (4) a rejuvenated foreland basin stage (Paleogene-Quaternary) (Cao et al., 2005; Chen et al., 2002; Kuang et al., 2022; Zhang et al., 1999). Based on the shape of the basement and the superimposed influence of later tectonic evolution, the basin can be divided into six primary structural units: the Central Depression, Luliang Uplift, Ulungu Depression, Eastern Uplift, Southern Margin Thrust Belt, and Western Uplift (Figure 1(a)) (Kuang et al., 2022).

Figure 1.

Location of the study area and distribution of structural units. (a) The site of the study area and the main structural units within the Junggar Basin; the blue line shows the location of the study area, the white areas indicate the present-day uplifts, and the gray areas show the depressions. (b) The structural units of the northwestern Junggar Basin and hydrocarbon accumulation in the Upper Wuerhe Formation; (c)The cross-section AA’, whose location is shown in (b), shows the super-Carboniferous stratigraphic units on Figure 2 based on the seismic reflection profile and stratigraphic correlation between wells; the faults in red were formed during the Hercynian to Indosinian, the faults in green were created during the Indosinian to Himalayan, and the faults in pink were formed during the Indosinian to Yanshanian. C = Carboniferous; P₁j = Lower Permian Jiamuhe Formation; P₁f = Lower Permian Fengcheng Formation; P₂x = Middle Permian Xiazijie Formation; P₂w = Middle Permian Lower Wuerhe Formation; P₃w = Upper Permian Upper Wuerhe Formation; T₁b = Lower Triassic Baikouquan Formation; T₂k = Middle Triassic Karamay Formation; T₃b = Upper Triassic Baijiantan Formation; J = Jurassic; K = Cretaceous.

The Mahu Sag is part of the Central Depression and is one of the most hydrocarbon-rich sags in the basin. Two prolific oil provinces with an area of more than 100 km² have been discovered in the interior of the Mahu Sag and its northern fault zone (Lei et al., 2017; Tang et al., 2019; Xia et al., 2022). Our study area is located in the southern part of the Mahu Sag and includes four secondary structural units: (1) the Hongche fault zone, (2) the Ke-Bai fault zone, (3) the Zhongguai uplift, and (4) the southern Mahu Sag (Figure 1(b)).

Four sets of potential source rocks were deposited in the Mahu Sag. These are, from bottom to top, the Carboniferous units (C), Lower Permian Jiamuhe Formation (P₁j), Lower Permian Fengcheng Formation (P₁f), and Middle Permian Lower Wuerhe Formation (P₂w) (Figures 1(c) and 2) (Cao et al., 2005; Hu et al., 2020). The Carboniferous units (C) and Jiamuhe Formation (P₁j) can be combined into the same source rock unit (C/P₁j) because of their similar stratigraphic distribution and depositional environments in the study area (Hu et al., 2020; Tao et al., 2019). Tuffaceous mudstones dominate the C/P₁j source rocks with moderate to low TOC (total organic carbon) and moderate S₁+ S₂ (petroleum generation potential) (Cao et al., 2005; Tao et al., 2019). Most of the kerogen within the C and P₁j source rocks is dominated by benthic algae and higher plant-related components, indicating both oil and gas potentials (Qin et al., 2022; Tao et al., 2019). The P₁f source rocks are mainly composed of mudstone, dolomitic mudstone, and tuffaceous mudstone with moderate to high TOC and high S₁+ S₂ values, and kerogen types belong to types I and II, which consist primarily of bacteria and algae but few higher plants (Tao et al., 2019). The P₁f source rocks are now mature to over-mature, suitable for oil and gas generation, and have the most significant oil generation potential (Cao et al., 2005, 2006; Hu et al., 2020). The P₂w source rocks are dominated by mudstone and have low TOC and S₁+ S₂ values, while the kerogen is mainly of type III, containing more higher plant components such as sporopollenin and woody debris, which suggests that the P₂w source rocks have limited potential for the generation of liquid hydrocarbons but may be favorable for gas generation (Cao et al., 2005; Tao et al., 2019).

Figure 2.

Summary of composite stratigraphic formations of the northwest margin (Mahu Sag) of the Junggar Basin. The lithology and the thickness of the formations are based on Cao et al. (2005) and Kuang et al. (2022). The four sets of source rocks combined with reservoirs and cap rocks are shown in the right column.

The Upper Wuerhe Formation is an important oil reservoir in the basin; it is a large-scale shallow retrogradation fan-delta deposit under the background of a gentle slope (0.84–2.86°) in the depression basin stage, with a thickness of 37 to 311 m in the Mahu Sag (Tang et al., 2018; Wang et al., 2021; Zheng et al., 2019). Fan-deltas can extend for tens to hundreds of kilometers due to the gentle paleomorphology and the large amounts of coarse-grained sediments provided by continuous uplift of the orogenic belt around the basin (Tang et al., 2018). There is high primary porosity in the subaqueous channel sandy conglomerate microfacies developed in the fan-delta front, which are favorable lithofacies for oil and gas exploration in the Upper Wuerhe Formation (Kuang et al., 2022; Tang et al., 2018). The Upper Wuerhe Formation was formed during the gradual rise of the lake level. The sediments gradually became finer upward and could be divided into three members according to lithological assessment from bottom to top: the first member is mainly composed of conglomerate; the second member is primarily composed of conglomerate, sandstone, and thin mudstone; and the third member mainly consists of thick shallow lacustrine mudstone (Figure 2). The thin mudstones deposited in the inter-fan setting and the thick mudstones of the shallow lacustrine environment in the third member constitute local and regional caprocks, respectively.

Instead of the sources-reservoir-caprocks system, three types of faults developed in different tectonic stages in the Mahu Sag: (1) The NE-SW-trending reverse fault developed in the Hercynian to Indosinian, (2) strike-slip faults developed from the Indosinian to Himalayan, and (3) normal faults developed from the Indosinian to Yanshanian (Figure 1(c)) (Chen et al., 2018; Tao et al., 2006). The faults that developed from the Hercynian to the Indosinian provide a vertical channel for the hydrocarbon to migrate vertically and accumulate in the Upper Wuerhe Formation due to its steep fault plane and large fault displacement, which connected the sandy conglomerate reservoirs and multiple source rocks from the Carboniferous to the Middle-Late Triassic. Furthermore, the unconformity at the bottom of the Upper Wuerhe Formation is an efficient channel for the lateral migration of hydrocarbons and, together with various faults, constitutes a three-dimensional migration system. In particular, the Large-Zhuluogou fault, a NW-trending strike-slip fault located in the middle of the Mahu Sag, plays an important role in controlling hydrocarbon accumulation in the Mahu Sag (Bian et al., 2019; Lei et al., 2017). Previous studies have revealed differences in the hydrocarbon accumulation on both sides of the fault. In the northern part, there is mainly the Fengcheng Formation (P₁f) petroleum system, with most of the oils coming from P₁f source rocks (Yu et al., 2017; Zhi et al., 2021). In the south, hydrocarbon accumulation is more complex, with oils from multiple sources known as the Carboniferous to Permian (C-P) petroleum system (Figure 1(b)) (Bian et al., 2019; Tao et al., 2021; Yu et al., 2017).

Samples and methods

Forty-six crude oil samples were collected from the Upper Wuerhe Formation with a depth of 2557 to 5110 m from 41 hydrocarbon production wells distributed in the Zhongguai uplift and Mahu Sag. These crude oil samples cover the study area. Thirty-three samples are on the Zhongguai uplift, and 13 samples are in the Mahu Sag.

The crude oils were fractionated using silica gel column chromatography with n-hexane, n-hexane, dichloromethane (70:30 v/v), and dichloromethane and methanol (50:50 v/v) to yield saturated, aromatic, and polar + asphaltene fractional compositions, respectively. The stable carbon isotope (δ¹³C) composition of crude oil was determined using a Finnigan MAT-253 mass spectrometer. Carbon isotope ratios were standardized to Vienna Peedee Belemnite (V-PDB).

Whole oil and saturated hydrocarbon gas chromatography (GC) was carried out on a Hewlett Packard 6890 II GC instrument. A 50 m × 0.25 mm × 0.25 μm dimethylpolysiloxane capillary column was used to separate light hydrocarbons and higher molecular weight hydrocarbons employing nitrogen as a carrier gas; the components were detected using a flame ionization detector at a temperature of 320°C. The biomarkers were determined by GC (Hewlett Packard 6890 II GC) coupled to a Quattro II mass selective detector. The instrument was fitted with an HP-1 30 m × 0.25 mm inner-diameter fused silica column that used nitrogen as a carrier gas. The GC oven was initially set at 50°C for 2 minutes, then increased to 100°C at 2°C min⁻¹, and then to 310°C at 3°C min⁻¹, with a final hold time of 15 min.

Results

Bulk properties of crude oil

In this study, we have classified 46 crude oil samples into 4 types based on their representive molecular geochemical parameters (to be discussed below). The results show that most oils are enriched in saturated hydrocarbons relative to aromatics and nonhydrocarbons (polars + asphaltenes) (Figure 3(a) and Table 1), but there are also clear fractional composition differences between different crude oil types. Type I oils have relatively lower saturated hydrocarbon content compared to type II, with average values of 71.73% and 80.53%, respectively (Figure 3(a)). Only one oil sample belongs to type III, which has the highest proportion of aromatic hydrocarbons compared to other types (Figure 3(a)). The composition of type IV oils (a mixed origin of type I and type II, which will be discussed later) exhibits fractional composition characteristics of both type I and type II oils (Figure 3(a)).

Figure 3.

Bulk properties of deep oils in the south Mahu Sag of northwestern Junggar Basin. (a) Ternary diagram comparing the fractional compositions of oils in the study area and (b) variations in wax contents of crude oils in the study area.

Table 1.

Bulk properties of crude oils from the Upper Wuerhe Formation in the study area.

Area	SampleID	Well name	Depth,(m)	Wax content wt. %	Heptane index(%)	Isoheptane index(%)	Fractional composition, %			Oil type
Area	SampleID	Well name	Depth,(m)	Wax content wt. %	Heptane index(%)	Isoheptane index(%)	Saturated hydrocarbons	Aromatic hydrocarbons	Polars + Asphaltan-es	Oil type
Zhongguaiuplift	1	J205	3860–3882	4.89	35.00	2.95	68.21	10.05	11.96	Ⅰ
	2	J207	4085–4100	6.44	/	/	77.68	9.28	10.15	Ⅰ
	3	J208	4164–4176	4.40	31.26	2.04	87.73	7.73	2.13	Ⅰ
	4	JL7	3154–3191	/	35.09	2.50	45.07	8.06	13.14	Ⅰ
	5	JL7	3218–3241	1.15	31.09	2.08	41.12	10.59	34.58	Ⅰ
	6	JL8	3224–3232	5.86	33.28	1.60	65.15	9.09	17.27	IV
	7	JL17	3524–3531	4.73	31.49	1.50	64.55	12.17	15.35	Ⅰ
	8	JL17	3493–3500	4.31	32.13	1.20	67.32	9.22	13.41	Ⅰ
	9	JL26	3005–3013	1.10	41.60	2.11	56.51	13.02	23.97	IV
	10	JL30	2976–3004	5.54	32.68	1.78	59.24	14.96	17.6	Ⅰ
	11	JL33	2737–2748	6.59	33.84	2.32	72.51	4.58	4.86	Ⅰ
	12	JL34	3097–3105	3.73	/	/	68.94	13.35	20.16	Ⅰ
	13	JL42	2795–2801	6.76	/	/	72.38	8.14	10.75	IV
	14	JL43	3175–3223	4.41	27.97	1.99	66.67	9.6	11.88	Ⅰ
	15	JL43	3111–3138	3.80	/	/	71.86	12.28	14.97	Ⅰ
	16	JL46	3302–3344	3.82	30.52	1.74	64.86	10.81	15.91	Ⅰ
	17	JL50	4092–4120	5.11	31.89	2.79	73.96	14.68	9.7	Ⅰ
	18	JL50	3987–4048	2.26	9.84	1.20	53.21	12.83	32.35	Ⅰ
	19	JL51	3912–3932	8.96	37.65	1.28	71.1	5.95	8.5	Ⅱ
	20	JL53	4174–4180	9.0	36.66	1.17	25.14	4.64	6.84	Ⅱ
	21	JL54	4317–4322	3.7	25.66	1.51	57.59	9.74	17.76	Ⅰ
	22	JL56	4358–4366	7.3	42.54	4.67	57.1	2.96	4.73	Ⅱ
	23	JT1	4501–4540	6.58	32.43	1.23	73.6	10.93	5.86	IV
	24	JL117	2605–2610	6.01	/	/	63.52	13.27	16.33	Ⅰ
	25	JL118	2557–2559	3.96	/	/	63.8	10.12	22.09	Ⅰ
	26	JL120	2640–2652	3.23	29.47	1.89	53.33	11.11	19.17	Ⅰ
	27	K012	3258–3268	2.89	/	/	52.78	12.5	21.39	Ⅰ
	28	K017	3031–3040	0.26	31.77	1.42	52.16	7.03	11.63	IV
	29	K022	2558–2561	3.54	34.37	2.35	58.79	9.09	17.57	Ⅰ
	30	K80	3951–4011	7.76	/	/	88.46	7.42	4.94	Ⅱ
	31	K841	2992–3030	/	10.64	0.90	73.95	19.53	5.47	Ⅲ
	32	MH8	3342–3350	3.45	31.86	2.27	82.43	6.98	8.78	Ⅰ
MahuSag	33	MH1	3420–3437	6.49	/	/	77.69	10.74	10.46	IV
	34	MH7	3352–3442	6.10	/	/	75.08	12.91	12.61	Ⅰ
	35	MH10	3342–3350	11.11	40.09	1.44	78.98	8.41	13.21	Ⅱ
	36	MH11	3422–3461	7.51	35.77	1.20	73.95	9.28	9.58	IV
	37	MH15	3146–3154	8.44	36.03	1.47	77.19	6.73	7.31	IV
	38	MH18	3642–3682	6.95	/	/	74.85	6.29	7.78	Ⅰ
	39	MH28	4096–4125	8.2	35.64	1.21	70.05	10.43	8.02	Ⅱ
	40	MH35	4474–4558	6.35	/	/	70.55	11	6.15	IV
	41	MH40	4501–4540	4.69	39.42	2.83	73.3	4.63	9.26	IV
	42	MH45	4115–5110	6.2	53.33	13.00	87.03	3.16	1.26	IV
	43	MH013	3642–3648	7.39	40.45	4.40	47.47	4.27	4.53	IV
	44	MH013	3642–3648	6.50	40.82	4.52	48.57	4.29	3.43	IV
	45	MH014	3737–3844	7.49	/	/	79.44	11.67	5	Ⅱ
	46	MH015	3699–3702	7.58	44.07	2.65	60.54	7.83	10.84	IV

The wax content of these crude oils show that type I oils have a lower wax content with an average of 4.74%, compared to the average of 8.55% of type II oils (Figure 3(b) and Table 1). Type IV oils' wax content intermediate between types I and II, with an average value of 6.73%.

When these oil samples are mapped onto their location of the study area, more details can be observed that the Mahu Sag oils are relatively rich in saturated hydrocarbons ranging from 47.47% to 87.03% (mean of 71.05%) and contains lower nonhydrocarbon content (mean of 7.82%). In contrast, the Zhongguai uplift has a decrease in saturated hydrocarbon content ranging from 41.12% to 88.46% (mean of 64.09%), but an increase in nonhydrocarbon content (mean of 14.1%) (Figure 4 and Table 1).

Figure 4.

The distribution of fractional compositions of crude oil samples in the study area.

Similar to the spatial variation in saturation content of the crude oils, the wax contents are the richest in the Mahu Sag oil samples,with an average of 7.21%; whereas the oil samples from Zhongguai uplifts have lower wax content, with an average of 4.72% (Figure 5 and Table 1). Both parameters of saturation and wax content are rich in Mahu Sag and relatively low in the Zhongguai uplift, we attributed this spatial variation to thermal maturity or possibly different provenances of crude oils in the Upper Wuerhe Formation. Further details are discussed in the section on sources of the crude oils and their distribution.

Figure 5.

The distribution of wax content of crude oil samples in the study area.

Carbon isotopes of crude oil

The δ¹³C values of the crude oils range from −28.54‰ to −31.67‰. Group II oils are generally depleted in ¹³C relative to group I oils, with average values of −31.35‰ and −30.22‰, respectively (Figure 6(f)). Group III consists of only one oil sample, for which the carbon isotope ratio was not obtained. Group IV oils (refered to here as geochemically hybrid, and inferred to be mixed by groups I and II oils) have a wide range of δ¹³C values, ranging from −31.46‰ to −28.54‰, with an average of 30.07‰. The variability of δ¹³C values observed in different oil groups may be attributed to variations in the sources of crude oils. These values can be used in conjunction with other molecular geochemistry parameters to confirm the distinct origins of these crude oils, which will be discussed further in the section on the sources of Crude Oils and Their distribution.

Figure 6.

Representative biomarker parameters and carbon isotope data for crude oil samples in the Upper Wuerhe Formation. (a) Cross plot of pristane/phytane (Pr/Ph) versus β-carotane/n-C_i (maximum of n-alkanes); (b) cross plot of pristane/phytane (Pr/Ph) versus gammacerane/C₃₀ hopane; (c) cross plot of tricyclic terpane (C₁₉+C₂₀)/C₂₁ ratio versus C₂₁/C₂₃; (d) cross plot of pristane (Pr)/n-C₁₇ versus phytane/n-C₁₈ ratios; (e) relative proportion of C₂₇, C_28, and C₂₉ regular steranes (5α(H), 14α(H), and 17α(H)20R); and (f) plot of pristane/phytane (Pr/Ph) ratio versus stable carbon isotope (whole oil).

Molecular geochemistry of crude oil

Typical molecular geochemical parameters with source and depositional environment information are used to infer the provenance of crude oil in the Upper Wuerhe Formation. These are listed in Table 2 and are graphically presented in Figure 6. Four genetic oil groups were recognized based mainly on the biomarker parameters of the 46 crude oil samples. The following paragraphs, introduce the details of the molecular geochemical characteristics of different oil groups.

Table 2.

Representative molecular geochemical parameters of crude oils recovered from the Upper Wuerhe Formation.

Area	ID	Well name	Depthm	β-Car./n-C _i	(C₁₉+ C₂₀)/C₂₃TT	C₂₁/ C₂₃TT	G/C₃₀H	Pr/Ph	Pr/n-C₁₇	Ph/n-C₁₈	C₂₇(%)	C₂₈(%)	C₂₉(%)	δ¹³C（‰）	Oil group
Zhongguai uplift	1	J205	3860–3882	0.73	0.90	0.96	0.31	1.11	0.55	0.55	13.38	40.66	45.96	−30.36	Ⅰ
	2	J207	4085–4100	1.41	0.85	0.86	0.55	1.10	0.57	0.57	13.38	40.94	45.68	−30.75	Ⅰ
	3	J208	4164–4176	1.05	0.99	0.97	0.53	1.17	0.52	0.46	14.19	41.80	44.01	−30.77	Ⅰ
	4	JL7	3154–3191	0.52	0.76	0.83	0.36	1.24	0.58	0.59	10.80	43.41	45.79	−29.55	Ⅰ
	5	JL7	3218–3241	4.51	0.87	0.88	0.43	1.01	0.93	1.16	16.89	40.45	42.66	−29.98	Ⅰ
	6	JL8	3224–3232	1.10	1.26	1.22	0.31	1.33	0.65	0.55	20.88	33.92	45.20	−28.54	IV
	7	JL17	3524–3531	1.22	0.93	0.90	0.54	1.45	0.89	0.60	16.65	37.40	45.95	−30.24	Ⅰ
	8	JL17	3493–3500	1.19	0.96	0.94	0.54	1.28	0.59	0.50	13.95	38.97	47.09	−30.26	Ⅰ
	9	JL26	3005–3013	0.15	1.10	1.12	0.47	1.40	0.64	0.58	11.19	36.66	52.15	−30.15	IV
	10	JL30	2976–3004	2.24	0.85	0.93	0.3	0.96	0.75	0.92	15.87	40.35	44.79	−30.57	Ⅰ
	11	JL33	2737–2748	0.32	1.02	1.02	0.41	1.14	0.49	0.49	17.26	38.64	44.1	−30.28	Ⅰ
	12	JL34	3097–3105	2.85	1.09	1.03	0.51	1.31	1.01	0.79	11.80	40.86	47.34	−29.56	Ⅰ
	13	JL42	2795–2801	0.82	1.16	1.12	0.37	1.21	0.68	0.62	16.18	39.50	44.32	−29.96	IV
	14	JL43	3175–3223	1.66	0.87	0.86	0.56	1.01	0.52	0.52	16.27	37.17	46.56	−30.40	Ⅰ
	15	JL43	3111–3138	1.33	0.93	0.94	0.57	1.11	0.67	0.64	13.81	40.03	46.16	−30.15	Ⅰ
	16	JL46	3302–3344	1.73	0.96	0.93	0.53	1.34	0.58	0.47	12.28	38.01	49.71	−30.72	Ⅰ
	17	JL50	4092–4120	0.43	0.85	0.94	0.37	1.16	0.45	0.44	9.76	43.24	47.00	−30.32	Ⅰ
	18	JL50	3987–4048	2.20	0.67	0.83	0.33	1.10	0.41	0.41	7.39	41.64	50.98	−30.31	Ⅰ
	19	JL51	3912–3932	0.07	1.31	1.20	0.35	1.32	0.36	0.30	23.45	30.09	46.46	−31.51	Ⅱ
	20	JL53	4174–4180	0.35	0.95	1.49	0.24	1.27	0.42	0.36	22.38	34.80	42.82	−31.67	Ⅱ
	21	JL54	4317–4322	2.93	0.86	0.97	0.27	0.75	1.38	1.77	10.92	35.09	53.99	−30.94	Ⅰ
	22	JL56	4358–4366	0.14	1.36	1.55	0.17	1.38	0.51	0.40	30.28	26.41	43.31	−29.98	Ⅱ
	23	JT1	4501–4540	0.41	0.89	1.09	0.31	1.30	0.50	0.45	17.77	36.23	46.01	−30.34	IV
	24	JL117	2605–2610	2.43	0.93	0.92	0.51	1.04	0.68	0.69	16.20	39.67	44.13	−30.03	Ⅰ
	25	JL118	2557–2559	2.35	0.86	0.86	0.46	1.06	0.63	0.65	13.66	40.05	46.29	−30.26	Ⅰ
	26	JL120	2640–2652	4.45	0.85	0.86	0.44	1.05	0.62	0.63	13.07	40.68	46.25	−30.44	Ⅰ
	27	K012	3258–3268	1.99	0.82	0.86	0.41	1.14	0.72	0.68	14.47	40.51	45.03	−30.61	Ⅰ
	28	K017	3031–3040	0.68	1.26	1.16	0.40	1.51	0.93	0.60	15.15	40.18	44.67	−29.88	IV
	29	K022	2558–2561	1.42	0.89	1.08	0.40	1.15	0.52	0.52	9.76	40.37	49.86	−30.29	Ⅰ
	30	K80	2951–4011	0.14	1.24	1.26	0.24	1.31	0.45	0.36	15.85	42.04	42.11	−31.83	Ⅱ
	31	K841	2992–3030	0.10	2.48	0.96	0.12	3.02	0.61	0.19	10.28	23.92	65.80	−29.52	Ⅲ
	32	MH8	3342–3350	1.30	1.31	0.99	0.26	1.14	0.93	0.92	15.27	40.22	44.51	−30.05	Ⅰ
Mahu Sag	33	MH1	3420–3437	0.94	1.45	1.34	0.28	1.13	0.90	0.85	13.14	43.48	43.37	−29.89	IV
	34	MH7	3352–3442	1.40	0.99	0.96	0.35	0.93	0.88	1.08	13.05	43.20	43.75	−29.76	Ⅰ
	35	MH10	3342–3350	0.13	1.04	1.10	0.26	1.18	0.38	0.32	21.63	39.69	39.68	−31.45	Ⅱ
	36	MH11	3422–3461	0.60	1.42	1.41	0.22	1.15	0.57	0.53	14.70	41.83	43.47	−30.98	IV
	37	MH15	3146–3154	0.62	1.55	1.26	0.29	1.10	0.64	0.61	16.52	43.29	40.19	−30.48	IV
	38	MH18	3642–3682	0.12	0.87	0.87	0.53	1.17	0.58	0.51	17.05	39.54	43.41	−29.68	Ⅰ
	39	MH28	4096–4125	0.15	0.89	1.14	0.28	1.28	0.37	0.31	20.03	32.62	47.35	−31.54	Ⅱ
	40	MH35	4474–4558	0.26	0.98	1.29	0.43	1.14	0.45	0.44	41.10	31.74	27.16	−29.19	IV
	41	MH40	4501–4540	0.23	0.64	1.02	0.40	1.40	0.45	0.34	16.04	35.85	48.11	−30.59	IV
	42	MH45	5110–4115	0.19	0.94	1.98	0.58	1.03	0.61	0.61	57.36	15.86	26.78	−29.33	IV
	43	MH013	3642–3648	0.25	1.12	1.05	0.86	1.07	0.52	0.49	32.22	29.71	38.07	−29.66	IV
	44	MH013	3642–3648	0.29	1.15	1.06	0.84	1.07	0.52	0.49	34.07	32.79	33.15	−29.68	IV
	45	MH014	3737–3844	0.10	1.09	1.15	0.36	1.24	0.33	0.29	21.48	30.69	47.84	−31.50	Ⅱ
	46	MH015	3699–3702	0.09	1.15	1.28	0.60	1.36	0.34	0.27	20.83	28.01	51.16	−31.46	IV

β-Car./n-C_i=β-carotane/maximum concentration of n-alkanes; C₂₇(%)=C₂₇ααα20R/(C₂₇ααα20R + C₂₈ααα20R + C₂₉ααα20R); G = gammacerane; ID = sample identifier; J = Jin; JL = JinLong; JT = JinTan; K = Ke; MH = MaHu; Ph = phytane; Pr = pristane; n-C₁₇= normal alkane with 17 carbon atoms; n-C₁₈= normal alkane with 18 carbon atoms; TT = tricyclic terpane.

β-Carotane/n-C _i (maximum n-alkanes) ratio: The β-carotane/n-C _i of the oil samples range from 0.07 to 4.51. Group I oils are rich in β-carotane, whose values of β-carotane/n-C _i ratio range from 0.12 to 4.51, with an average of 1.63 (Figure 6(a) and Table 2). Group II oils have a lower β-carotane concentration, and its β-carotane/n-C _i ratio is distributed between 0.07 to 0.35, with an average of 0.15. Group III oils have a very low β-carotane abundance (β-carotane/n-C _i = 0.1). The β-carotane/n-C _i ratios of the oil samples in group IV oils are low to moderate, ranging from 0.09 to 1.1, with an average of 0.51. Notably, group I oils contained a high concentration of β-carotane because the β-carotane in most oil samples of this group is more abundant than n-alkanes, as indicated by a ratio of β-carotane/n-C _i greater than one.

Gammacerane/C₃₀ hopane ratio: The distribution of gammacerane abundance in the four oil groups is similar to that of β-carotane (Figure 6(b) and Table 2). Group I oils are rich in gammacerane, having a higher gammacerane/C₃₀ hopane ratio ranging from 0.26 to 0.86, with a mean of 0.47. Whereas group II oils’ gammacerane content is relatively low, and the ratios of gammacerane/C₃₀ hopane range from 0.17 to 0.36, with a mean of 0.27. Group III oils have the lowest gammacerane abundance, with a gammacerane/C₃₀ hopane ratio of 0.12.

Pristane (Pr)/phytane(Ph) ratio: The Pr/Ph ratio in the four oil groups shows a negative correlation with β-carotane/n-C _i and gammacerane/C₃₀ hopane (Figure 6(a) and (b)). The ratios in group I oils is low, ranging from 0.75 to 1.45, with an average of 1.12. The ratios in group II oils, ranging from 1.18 to 1.38 (average = 1.28), are relatively higher than group I oils. Group III oils pristane have a higher abundance than phytane, with the highest Pr/Ph ratio (3.02) in all oil samples. Group IV oils have a low to moderate Pr/Ph ratios, ranging from 1.01 to 1.51, with an average of 1.24.

(C₁₉+ C₂₀)/C₂₁ versus C₂₁/C₂₃ tricyclic terpane ratio: This is a primary parameter for distincting oil types and classifying them into different oil groups which have a common hydrocarbon kitchen. It is used to show the relative concentration of low carbon number tricyclic terpane (such as C₁₉, C_20, and C₂₁ tricyclic terpane) to high carbon number tricyclic terpane (such as C₂₃ tricyclic terpane). Group I oils have relatively few low carbon number tricyclic terpenes with, and the ratios of (C₁₉+ C₂₀)/C₂₁ and C₂₁/C₂₃ tricyclic terpane range from 0.67 to 1.31 (mean of 0.93) and 0.83 to 1.08 (mean of 0.92), respectively (Figure 6(c)). Whereas group II oils contained more C₁₉, C₂₀, and C₂₁ low carbon number tricyclic terpenes, and the ratios of (C₁₉+ C₂₀)/C₂₁ and C₂₁/C₂₃ tricyclic terpane were between 0.89 to 1.36 (mean of 1.13) and 1.10 to 1.55 (mean of 1.27). Group III oils have the highest relative abundance of tricyclic terpenes with low carbon number, especially C₁₉ and C₂₀ tricyclic terpane. Their (C₁₉+ C₂₀)/C₂₁ ratio is the highest, with a value of 2.48.

Acyclic isoprenoids (pristane and phytane) and corresponding n-alkane ratio: This parameters show that group I oils have a relatively higher abundance of acyclic isoprenoids, with the ratio of Pr/n-C₁₇ and Ph/n-C₁₈ ranging from 0.41 to 1.38 (mean of 0.67) and 0.41 to 1.77 (mean of 0.67), respectively. However, the ratio of Pr/n-C₁₇ to Ph/n-C₁₈ is relatively low, ranging from 0.78 to 1.48, with a mean of 1.03 (Figure 6(d)). Group II oils have a lower ratio of Pr/n-C₁₇ and Ph/n-C₁₈—from 0.31 to 0.51 (mean of 0.40) and 0.29 to 0.40 (mean of 0.33), respectively, but the ratio of Pr/n-C₁₇ versus Ph/n-C₁₈ is relatively high, ranging from 1.13 to 1.28 with a mean of 1.20 (Figure 6(d)). Group III oils have a higher relative pristane (Pr) content, but lower phytane (Ph) content, and the Pr/n-C₁₇ versus Ph/n-C₁₈ ratio is the highest among all samples (3.21). The ratio of Pr/n-C₁₇ and Ph/n-C₁₈ of oil samples in group IV is moderate, having an average of 0.60 and 0.52, respectively.

The relative abundance of C₂₇, C₂₈, and C₂₉ regular steranes: The attribution of C₂₇, C₂₈, and C₂₉ regular steranes show that most oils are relatively enriched in C₂₉ steranes, with proportions ranging from 26.78% to 65.80% (mean of 45.00%), followed by C₂₈ and C₂₇ regular steranes (Figure 6(e)). In detail, the abundance of C₂₈ steranes in group I oils is relatively high, ranging from 29.71% to 43.41%, which is close to the average content of C₂₉ steranes, its average is 45.47%. The content of C₂₇ sterane in group I oils is relatively low, ranging from 7.39% to 17.26%, with an average of 13.63%. Whereas the C₂₇ sterane content in group II oils increased, and its range is 15.85% to 30.28% (mean of 22.16%), and the C₂₈ content is lower, ranging from 26.41% to 42.04%, with an average of 33.76%. Group III oils have the highest C₂₉ sterane content of all crude oils, with a proportion of 65.8%, followed by C₂₈ and C₂₇ regular steranes, with a proportion of 23.92% and 13.62%, respectively (Figure 6(e)).

Discussion

Identification signatures of source rocks

Four possible source rock units developed in the northwestern Junggar Basin, There are, from bottom to top, the Carboniferous (C) unit, Lower Permian Jiamuhe (P₁j) Formation, Lower Permian Fengcheng (P₁f) Formation, and Middle Permian Lower Wuerhe Formation (P₂w). In particular, the C and P₁j source rocks can be considered a single source unit because they are both dominated by tuffaceous mudstones and have similar geographic distributions (Cao et al., 2005; Tao et al., 2019).

The P₁f source rocks are rich in gammacerane and β-carotane and have a low Pr/Ph ratio (Huang et al., 2016; Ma et al., 2015; Tao et al., 2019; Wang, 2001; Wang and Kang, 1999; Zhang et al., 2022). The gammacerane index (gammacerane/C₃₀ hopane) ranges from 0.18 to 0.84 (mean of 0.53), and the β-carotane/n-C_i ranges from 0.5 to 3.7 (summarized in Table 3 of this study) (Tao et al., 2019). The Pr/Ph ratio is less than or slightly >1 as shown in many previous studies (Ma et al., 2015; Tao et al., 2019; Zhang et al., 2000). In terms of tricyclic terpanes, the P₁f source rocks have a relatively high abundance of C₂₃ tricyclic terpenes, followed by C₂₁, C_20, and C₁₉ tricyclic terpenes, which show an ascending distribution pattern between the C₂₀, C₂₁, and C₂₃ tricyclic terpenes (Table 3) (Huang et al., 2016; Ma et al., 2015; Tao et al., 2019). Based on these biomarker data, the P₁f source rocks were interpreted to have been deposited in a reducing to strongly reducing alkaline lacustrine setting (Tao et al., 2019). This setting is also supported by the widespread distribution of alkaline minerals such as dolomite (CaMg(CO₃)₂), sodalite (NaHCO₃), and shortite (Na₂Ca₂(CO₃)₃) in the P₁f (Cao et al., 2015; Tang et al., 2022; Zhang et al., 2018).

Table 3.

Representative molecular geochemical signatures of four possible source rocks in the Junggar Basin.

	Carboniferous and Jiamuhe Formation (C/P₁j)	Fengcheng Formation (P₁f)	Lower Wuerhe Formation (P₂w)
Tricyclic terpanes	1) C₂₀< C₂₁> C₂₃ (Ma et al., 2015)2) C₂₁/C₂₃> 1；>0.9（C₁₉+ C₂₀）/C₂₃< 5.0 (Tao et al., 2019)	1) C₂₀< C₂₁< C₂₃ (Huang et al., 2016; Ma et al., 2015; Wang and Kang, 1999)2) C₂₁/C₂₃< 1；0<（C₁₉+ C₂₀）/C₂₃< 2.0 (Tao et al., 2019)	1) C₂₀> C₂₁> C₂₃ (Ma et al., 2015)2) C₂₁/C₂₃> 1；>3.0（C₁₉+ C₂₀）/C₂₃< 9.0 (Tao et al., 2019)
Distribution pattern of tricyclic terpanes
Gammacerane and related parameters	1) Poor, Ga/C₃₀H = 0.07∼0.11 (Zhang et al., 2000)2) Moderate G/C₃₀H (mean of 0.20; Tao et al., 2019)	1) Rich, Ga/C₃₀H = 0.4 (Zhang et al., 2000)2) Rich 0.18∼0.84 (mean of 0.53; Tao et al.,2019)	1) Poor (Ma et al., 2015)2) Poor, lower G/C₃₀H (mean of 0.10; Tao et al., 2019)
β-Carotanes and related parameters	1) Moderate (Wang, 2001)2) Poor (Ma et al., 2015)3) Poor; β-carotanes/n-C _i <0.3 (Tao et al., 2019)	1) Rich (Zhang et al., 2000; Ma et al., 2015; Wang and Kang, 1999）2) Rich; 0.5<β-carotanes/n-C _i <3.7 (Tao et al., 2019)	1) β-carotanes/n-C _i = 0.06∼0.17 (Bian et al., 2019)2) Poor (Ma et al., 2015)3) β-carotanes/n-C _i <0.2 (Tao et al., 2019)
Pr/Ph	1) 0.93∼1.27（Wang and Kang, 1999）2) > 1 and partly <1 (Ma et al., 2015)3) Moderate Pr/Ph (mean of 1.30; Tao et al., 2019)	1) 0.8∼1.3（Zhang et al., 2000）2) < 1 (Ma et al., 2015)3) 0.81∼1.02 (mean of 0.84; Tao et al., 2019)	1) 1.23∼2.89（Zhang et al.,2000）2) > 1(Ma et al.,2015)3) High Pr/Ph ratio (mean of 2.60; Tao et al., 2019)

Ph = phytane; Pr = pristane.

The C and P₁j source rocks unit have a moderate ratio of Pr/Ph (mean of 1.30) and a poor to moderate gammacerane index value (mean of 0.20); the values of β-carotane/C_i are not higher than 0.3 (Huang et al., 2016; Ma et al., 2015; Tao et al., 2019; Zhang et al., 2000). The relative abundance of tricyclic terpenes differs from that of the P₁f source rocks, dominated by C₂₁ terpenes, followed by C₂₀ and C₂₃ tricyclic terpenes, which appear as a mountain peak pattern (C₂₀< C₂₁> C₂₃ tricyclic terpenes) (Table 3). The C and P₁j source rocks were deposited in a weakly oxidizing to reducing environment in marginal coastal to transitional facies (Tao et al., 2019).

The P₂w source rocks have a high Pr/Ph ratio, with an average value of 2.60 (Tao et al., 2019), and other studies have also shown that the ratio of Pr/Ph is >1, ranging from 1.23 to 2.89 (Table 3) (Ma et al., 2015; Zhang et al., 2000). The relative concentration of gammacerane and β-carotane are very small, with an average gammacerane index of 0.10 and the β-carotane/n-C_i ratio <0.20 mostly (Bian et al., 2019; Ma et al., 2015). The tricyclic terpenes in the P₂w source rocks are dominated by C₂₀, followed by C₂₁ and C₂₃ tricyclic terpenes, showing a noticeable “decline” style distribution (C₂₀> C₂₁> C₂₃) (Table 3). Based on these biomarker data, the P₂w source rocks were interpreted to have been deposited in a relatively oxidizing environment with the highest higher plant input (Tao et al., 2021).

Source identification of crude oils

The Mahu Sag contains four source units representing depositional settings, ranging from reducing alkaline lacustrine to a relatively oxidizing environment. In Wang and Kang (1999), Wang et al. (2001), and Tao et al. (2019), the tricyclic terpane is an effective parameter for separating different source rock types. Diterpanes, which include tricyclic terpane, have been proposed as marker compounds for higher plant materials in sediments and crude oils, especially the C₁₉ tricyclic terpanes (e.g., 19-norisopimarane) and C₂₀ tricyclic terpanes (e.g., isopimarane), which are abundant in higher plants and are the primary constituents of conifer resins (Noble et al., 1986). The plot of C₂₁/C₂₃ versus (C₁₉+ C₂₀)/C₂₃ tricyclic terpanes showed a positive linear relationship between the ratio of C₂₁/C₂₃ and the ratio of (C₁₉+ C₂₀)/C₂₃ tricyclic terpanes. The P₁f source rocks have the lowest relative concentrations of C₁₉, C₂₀, and C₂₁ tricyclic terpanes, and the ratios of C₂₁/C₂₃ and (C₁₉+ C₂₀)/C₂₃ were all <1.1 and 2.0, respectively. In contrast, the C and P₁j source rocks as well as the P₂w source rocks all have C₂₁/C₂₃ ratios >1.1, whereas the P₂w source rocks have greater C₂₁/C₂₃ ratios ranging from 3.0 to 9.0 than the C and P₁j source units, which ranges from 0.9 to 5.0 (Tao et al., 2019, 2021). As indicated in the introductory parameters for identifying four types of source rocks, this set of parameters is then used to classify the oils into four source-distinctive groups.

Source of group I oils (P₁f)

Group I oils are characterized by minor relative concentrations of C₁₉, C₂₀, and C₂₁ tricyclic terpanes, and the C₂₁/C₂₃ and (C₁₉+ C₂₀)/C₂₁ tricyclic terpanes were not >1.1 and 1.5, respectively, indicating limited terrestrial organic matter input (Figures 6(c) and 7(a)) (Noble et al., 1986; Tao et al., 2019). The lack of terrestrial input of the P₁f source rocks also reflected by other molecular parameters, including the ratios of β-carotane/n-C_i and gammacerane/C₃₀ hopane. β-Carotanes are believed to be derived from β-carotene, a compound susceptible to redox conditions and easily oxidized; they can only be preserved under strict reducing conditions (Ma et al., 2004). β-Carotane is formed by hydrogenation to carotene (reduction reaction), and its significant occurrence indicates a saline or hypersaline anoxic reducing depositional environment (Irwin and Meyer, 1990; Ma et al., 2004; Peters et al., 2007). Gammacerane is often found in sediments deposited under hypersaline conditions but is not exclusive to such an environment (Mello et al., 1988a; Moldowan et al., 1985). Gammacerane is an indicator of water column stratification, which promotes the development of hypersalinity and results in bacterivorous ciliates living below the chemocline biosynthesizing tetrahymanol, which is believed to be the precursor for the formation of gammacerane (Damsté et al., 1995). Among the four oil groups, group I oils have the highest relative concentration of β-carotanes and gammaceranes (Figures 6(a), (b) and 7(a)), indicating that group I oils originate from sediments deposited under hypersaline conditions with water column stratification, which is consistent with the mineralogy and molecular geochemical behaviors of the P₁f source rock in previous studies (Cao et al., 2006, 2015; Tang et al., 2022; Tao et al., 2019; Xia et al., 2022; Zhang et al., 2018, 2000, 2022). In addition, group I oils showed the lowest Pr/Ph ratio compared to other group oils (Figures 6(a), (b) and 7(a)). Phytane (Ph) predominance is achieved by reducing phytol residues or bacterial cell walls under anoxic conditions. A lower Pr/Ph ratio also indicates a reducing environment (Moldowan et al., 1985).

Figure 7.

Representative chromatogram for different genetic group oils of Upper Wuerhe Formation of south Mahu Sag. From left to right: GC-MS TIC of whole oil showing the alkane distribution, m/z 191 mass fragmentogram showing the distribution of terpanes, m/z 217 mass fragmentogram showing the distribution of steranes and diasteranes. Detailed information about the oil sample and peak identification is shown on the figure. GC-MS= gas chromatography-mass spectromentry; TIC=total ion chromatogram.

Pr/n-C₁₇ and Ph/n-C₁₈ (acyclic isoprenoids and corresponding n-alkane) data for oil from the Upper Wuerhe Formation indicate that a portion of the oil samples of group I is derived from marine or saline lacustrine organic matter in a strongly reducing environment, and the remainder fall into a weakly reducing environment (Figure 4(d)). This difference in the molecular geochemistry of group I oils is interpreted to be caused by P₁f source rock facies variations; the depocenter of P₁f is dominated by muddy dolomites or dolomitic mudstone, which are formed under a highly reducing condition with lower Pr/Ph; however, the off-depocenter area is dominated by mudstones deposited under the weakly reducing environment with a relatively high Pr/Ph; the averages of these two are 0.81 and 1.02, respectively (Tao et al., 2019). Group I oils have δ¹³C values in a relatively low and narrow distribution in the range of −30.94‰ to −29.55‰ (mean of −30.22‰), which correlated well with district I oils in Yu et al. (2017) and group I oils in Zhang et al. (2022), in which these oils are interpreted as P₁f derived, and their δ¹³C values are mainly distributed between −28‰ and −30‰ with rarely lower than −30‰ (Yu et al., 2017; Zhang et al., 2022).

Source of group II oils (C/P₁j)

Group II oils are mainly characterized by a higher ratio of C₂₁/C₂₃ tricyclic terpanes, all of which are >1.1, and the accompanying ratio of (C₁₉+ C₂₀)/C₂₃ also increases, with an average of 1.13 compared to the average value 0.93 of group I oils (Figures 6(c) and 7(b)). This indicates that group II oils differ from those in group I because the increasing relative concentration in the C₁₉, C₂₀, and C₂₁ tricyclic terpanes suggest a relatively high amount of higher plant input to group II oils, which is consistent with an origin from C and P₁j source rocks unit. This inference is also supported by the lower relative concentrations of β-carotane and gammacerane (Figures 6(a), (b) and 7(b)), reflecting group II oils formed in a typical marine or lacustrine setting with lower salinity and weak water column stratification. Similar features are also shown in the plot of Pr/n-C₁₇ versus Ph/n-C_18, which was used as a proxy for predicting the organic matter types and redox conditions of a given source. All the oil samples of group II are located in the mixed sources deposited under weakly oxidizing to reducing environments, which correspond to the multiple organic matter types in the C and P₁j source rocks, including primarily benthic algae and higher plant-related components (Tao et al., 2019).

The distributions of C₂₇, C₂₈, and C₂₉ regular sterane (Figure 6(e)) and carbon isotope ratios of the whole oils (Figure 6(f)) may also support their origin from C and P₁j source rocks with multiple organic matters; however, these two parameters are only supplementary rather than discriminative. The regular sterane 20R epimers of the 5α(H), 14α(H), and 17α(H) forms of C₂₇ to C₃₀ steranes are inherited directly from higher plants and algae without variation during maturation. The relative proportions of C₂₇, C₂₈, and C₂₉ regular steranes in oils are controlled by the types of organisms and are often used for facies interpretation (Waples and Machihara, 1990). The predominance of C₂₇ steranes is almost always associated with their contribution from marine organisms. The precursor of C₂₉ sterane is closely related to nonmarine organic matter. The C₂₈ sterane may become abundant through geological age with an increasing C₂₈ to C₂₉ ratio in the marine system (Grantham and Wakefield, 1988). In group II oils, the relative content of C₂₇ sterane increased in the background of a predominance of C₂₉ sterane (Figure 6(e)), which may be caused by a relative contribution of marine or lacustrine organisms in addition to the significant contribution of terrigenous organic matter. Isotopically, a portion of the oil samples fall into the range of group I, while the remainder are isotopically lighter than the other oil groups (Figure 6(f)). The distribution of C₂₇ to C₂₉ regular sterane and the δ¹³C of crude oil supplement in group II oils are derived from C and P₁j source units with mixed organic matter (algae and higher plants) deposited in a nearshore marine or transitional environment (Tao et al., 2019).

Source of group III oils (P₂w)

Group III oils stand out from the rest with relatively high concentrations of plant-derived tricyclic diterpenes such as C₁₉ and C₂₀ tricyclic terpane (Figure 6(c)), negligible β-carotane and gammacerane concentrations, and the highest Pr/Ph ratio (3.02) (Figures 6(a), (b) and 7(c)). In addition, the plot of pristane (Pr)/n-C₁₇ versus phytane (Ph)/n-C₁₈ suggests that group III oils originated from terrigenous organic matter (Figure 6(d)). Such a combination of biomarker distributions is characteristic of deposition in a relatively oxidizing proximal freshwater environment with high terrigenous organic matter inputs. Significant terrestrial input is consistent with the P₂w source rocks deposited in relatively oxidizing limnetic facies dominated by organic matter derived from higher plants (Tao et al., 2019). In addition, group III oils showed a strong predominance of terrestrially derived C₂₉ sterane with only low to moderate C₂₇ and C₂₈ regular sterane (Figure 6(e)), which is similar to the oil reservoirs in the lignite siltstones of the nonmarine Elko Formation of Nevada, which are dominated by terrestrial plant material (Palmer, 1984).

Compared with group I oils, groups II and III oils have biomarker signatures indicative of oxidizing environments affected by higher plant inputs. Whereas group III oils showed highly oxidative signatures compared to group II oils as reflected by the comprehensive biomarker parameters (Figure 6). Tao et al. (2019) have examined the organic petrography and molecular geochemistry of C/P₁j and P₂w source rocks in the northwestern Junggar Basin. The C and P₁j kitchens contain organic matters derived from multiple sources including benthic algae and higher plant components, and they were interpreted as deposited in a weakly oxidizing to reducing environmen. In contrast, the P₂w kitchens have distinctly different organic matter compositions and corresponding biomarker compositions; they were dominated by higher plant components and generally had high Pr/Ph values (mean of 2.6), indicating a relatively oxidizing environment (Qin et al., 2022; Tao et al., 2019).

Group III oils in this study is a high-wax oil with a high Pr/Ph ratio >3.0 and a strong odd-carbon preference in the region from n-C₁₇ to n-C₂₅ (Figure 7(c), left picture). These features are characteristic of a relatively oxidizing freshwater lacustrine depositional setting (Peters et al., 2000; Robinson, 1987). These oils contain little tricyclic terpane, but the low region of the m/z 191 chromatograms is dominated by C₂₀ tricyclic terpane and C₂₄ tetracyclic terpanes (Figure 7(c), middle picture), which are typical characteristics of oils derived from terrigenous organic matter deposited in a freshwater fluviodeatic and lacustrine depositional environment (Noble et al., 1986; Peters et al., 2007; Robinson, 1987; Waples and Machihara, 1990). A similar distribution of terpane has also been reported in Jurassic and Cretaceous oils in the Chinese Junggar Basin (Wang and Kang, 1999), Permian Karmona oils in the South Australian Cooper Basin (Philp and Gilbert, 1986), and Lower Neocomian oils in Brazilian Offshore Basins (Mello et al., 1988b), and their associated source rocks are coal and carbonaceous mudstone. Group III oil is interpreted as derived from P₂w source rocks as indicated by associated molecular geochemistry behaviors, especially the peak-to-peak similarity of terpane distribution. This shows that the oil is very similar to their interpreted P₂w source rock (Figure 7(d)), which has been demonstrated to be deposited in a relatively oxidizing setting containing mainly terrestrial organic matter, such as sporopollens and land–plant fragments (Tao et al., 2019).

Source of group IV oils (C/P₁j mixed P₁f)

Group IV oils are interpreted to represent mixed oils derived from C/P₁j and P₁f source rocks. Such evidence is provided, for example, by oils having a higher C₂₁ versus C₂₃ tricyclic terpane ratio significantly above one, but with a moderate relative concentration of β-carotane and gammacerane (Figures 6(a) to (c) and 7(e)). The high C₂₁/C₂₃ ratio of group IV oils is closely associated with group II oils derived from C and P₁j source units. However, the moderate abundance of β-carotane and gammacerane suggests a saline lacustrine setting with definite water column stratification, which shares characteristics with group I oils derived from P₁f source rocks.

C₂₁> C₂₃ tricyclic terpane ratio is a characteristic geochemical signature of the C/P₁j source unit and the P₂w source rocks (Cao et al., 2005; Ma et al., 2015; Tao et al., 2019; Zhang et al., 2000). However, the influence of P₂w source rocks was ruled out by their low to moderate Pr/Ph and (C₁₉+ C₂₀)/C₂₁ tricyclic terpane ratios (Figure 6(b) and (c)). All the oil samples are located in the area suggesting a reduction to a weakly oxidizing environment with mixed sources (Figure 6(d)). The distribution of C₂₇ to C₂₉ regular sterane in group IV shows that multiple sources may input from aquatic algae and higher plant input (Figure 6(e)). Isotopically, the wide range of δ¹³C values for group IV oils, ranging from −31.46‰ to −28.54‰, made it difficult to explain the 2.92‰ carbon isotope difference observed in oils from a single source (Figure 6(f)). The above charecteristics give such oil a hypersaline, reduced depositional setting with significant algae-related input and weakly oxidzing environment with influence of terrigenous organic matter. Therefore, group IV oils are believed to be mixed by oils drived from C/P₁j and P₁f source rocks.

Spatial distribution of the different crude oil types

The crude oil reservoired in the Upper-Formation is mixed because it is derived from multiple kitchens, including C/P₁j, P₁f, and P₂w source rocks. However, when we examine the spatial distribution of these supposedly mixed-source oils, we observe distinct regions of accumulation rather than mixing. A relatively clear feature is that the P₁f source rocks make the most significant contribution to the study area, and almost all areas contain crude oil from this kitchen (Figure 8); the oils (24 sample) belong to group I (P₁f-driven) are primarily located in the Zhongguai uplift. However, the C/P₁j kitchen has a limited influence on the Zhongguai uplift, group II oils (7 sample) are all located in the transition zone (Zhongguai slope) between the Zhongguai uplift and Mahu Sag. The P₂w source rocks have a very insignificant contribution to the crude oils in the study area; only one sample geochemically similar to the P₂w kitchen is documented in the Zhongguai uplift (Figure 8). Group IV oils, a geochemical hybrid group from P₁f and C/P₁j mixed kitchens, are mainly occurred in the Mahu Sag rather than Zhongguai uplift (Figure 8).

Figure 8.

The spatial distribution of different genetic group oils. Black dots represent oils derived from P₁f source rock; red dots represent oils derived from C and P₁j source unit; green dots represent oils derived from P₂w source rock; blue dots represent mixed oils derived from P₁f and C/P₁j source rocks. The main parameters used for crude oil classification are shown to the right of the well location dot: (a) C₂₁/C₂₃ tricyclic terpane ratio; (b) β-carotane/n-C _i ; and (c) gammacerane/C₃₀ hopane. C = Carboniferous; P₁j = Lower Permian Jiamuhe Formation; P₁f = Lower Permian Fengcheng Formation.

Compared with the lower wax content of the crude oils in the Zhongguai uplift, the waxy or high-wax crude oils in the study area is mainly distributed in the Zhongguai slope and the Mahu Sag (Figure 5), which is distinctively related to the results of oil-source correlation that the oils in this region are mainly derived from C and P₁j source rocks with significantly higher terrigenous plant input. According to the classification diagram established by previous research (Thompson, 1983), groups II and IV oils in this study fall into the highly mature region with higher heptane and isoheptane values, whereas group I oils belong to the areas of mature to high maturity, and only one oil sample (group III) fall into the low-maturity region. Although this maturity parameter can be modified by secondary effects such as biodegradation and evaporative fractionation, its reliability in reflecting changes in maturity is demonstrated by the fact that these highly mature crude oils (groups II and IV) in Figure 9(a) conrespondingly contain a higher relative content of saturated hydrocarbons (Figure 4), compared to the mature oils (group I), which containing a lower abundance of saturates (Figure 4).

Figure 9.

Variation of light hydrocarbon compositions and the wax content within the crude oil in the study area. (a) Variations in heptane and isoheptane index values indicate the variation in the maturity of different oils in the study area (cross plot is modified from Thompson, 1983); (b) cross plot of wax content for different sourced oils versus depth. Heptane index = heptanes/isopentane ×100; isoheptane index = (2-methylhexane + 3-methyhexane)/[(1c3 + 1t3 + 1t2)-dimethycyclopentane].

However, the high degree of maturity of groups II and IV oils may contribute to their higher wax content; this problem is solved by correlating the wax content of different genetic oils and their current burial depth (Figure 9(b)). The results shows that the wax content is not directly related to the burial depth of crude oils and even decreases in deeply buried areas. However, they have a clear relationship with the oil type, as groups II and IV oils generally have higher wax contents than group I, even at the same depth. Therefore, the higher wax content of these oil samples is mainly a result of the source influence rather than thermal maturity, which reflects a positive oil-source correlation as discussed above that the waxy oils of groups II and IV are derived from C and P₁j source rocks with significant terrigenous organic matter input.

Constrain factors and accumulation restoration

Source rock distribution controlled oil near-source accumulation

C and P₁j are distributed widely throughout the study area and have a closed stratigraphic distribution, with a common depocenter in the southern part of the Mahu Sag, where their thickness can exceed 1000 m (Figure 10(a) and (b)). The thickness gradually decreases toward the Zhongguai slope and uplift areas, and the residual thickness in the Zhongguai uplift becomes zero. The P₁f is also widely distributed in the study area, and the depocenter is located in the center of the Mahu Sag, where the thickness of the P₁f is up to 1200 m (Figure 10(c)). In contrast, the P₁w has a different stratigraphic distribution compared to the C/P₁j and P₁f source rocks; its depositional center is far from the study area and is located in the northeastern part of the Mahu Sag (Figure 10(d)).

Figure 10.

Maps showing the stratigraphic distribution and residual thickness of four sets of source rocks in the northwestern Junggar Basin. (a) Carboniferous (C); (b) Lower Permian Jiamuhe Formation (P₁j); (c) Lower Permian Fengcheng Formation (P₁f); and (d) Middle Permian Lower Wuerhe Formation (P₂w). The distribution of different genetic group oils is embedded in this map to better analyze the stratigraphic relationship between them and the source rocks.

By combining the oil-source correlation conclusions with the stratigraphic distributions of the four sets of source rocks, it is suggested that the hydrocarbons from these kitchens were are near-source accumulated, particularly those from C/P₁j source rocks. The evidences for the near-source accumulate is two-fold. First, the oils sourced from C/P₁j kitchens are mainly found in Mahu Sag area, which located near the depocenter of the C/P₁j source rocks (Figure 10(a) and (b)). Second, few oil samples correlate to P₂w kitchens. Only one sample is found in well K841 in the slope area, and this is consistent with the geological fact that the depocenter of the P₂w is far from the study area. Although the depocenter of the P₁f is not in the study area, most of the oils are found to be related to this kitchen, especially in the Zhongguai uplift, where all oil samples were interpreted as derived from P₁f source rocks. Similar geochemical oils related to the P₁f source rocks were also discovered in the Dabasong and Xiayan uplifts in southern Mahu Sag, both of which are far from the depocenter of the P₁f source rocks. The widespread hydrocarbons derived from P₁f source rocks may be related to the wide distribution of the P₁f in the northwestern Junngar Basin. Meanwhile, it probably reflects a higher hydrocarbon generation capacity which could be accompanied by more significant hydrocarbon expulsion and earlier hydrocarbon charging of the P₁f source rocks (Cao et al., 2006; Tao et al., 2019).

Buried-thermal evolution history controlled oil charging and mixing

To better reveal the deeper factors that influence the various hydrocarbon charging and mixing in the Upper Wuerhe Formation complex oil reservoirs, the burial history is reconstructed for two representative areas: the shallower buried Zhonguai slope zone (Figure 11(a)) and the deeper buried Mahu Sag zone (Figure 11(b)). The results show that source rocks in the different structural zones have different burial and thermal histories, and, therefore, that the two regions have different oil generation and charging histories. Three oil-charing events have been revealed based on the homogenization temperature of hydrocarbon-bearing inclusions in the northwestern Junggar Basin, which occurred in the Middle-Late Permian, Late Triassic to Early Jurassic, and Early Cretaceous, respectively (Cao et al., 2005, 2006). In the period of Middle-Late Permian, the P₁f and C/P₁j source rocks all reached the mature stage in the Mahu Sag, with Ro ranges of 0.7% to 1.0% and 1.0% to 1.3%, respectively. However, in the Zhongguai slope area, the C/P₁j source units were only in the low-maturity stage, and the P₁f source rocks did not enter the mature stage (Ro < 0.5). Thus, the different oil charging histories in the slope and sag zones had already started from this first hydrocarbon charging event.

Figure 11.

Diagram shows the burial and thermal evolution of two representative wells in the study area. (a) Zhongguai slope zone, well K80; (b) Mahu Sag zone, well MH3. These two representative simulation wells are represented by the green five-point star in Figure 1B. The basic tectonic and geothermal evolution data are from Qiu et al. The red arrows represent the time of hydrocarbon charging and are from Cao et al. (2006).

The Late Triassic to Early Jurassic is recognized as the main phase of petroleum generation and migration (Cao et al., 2006). The P₁f kitchens were at the mature to high-mature stage (∼1.3% Ro), and C/P₁j source units entered a high-over mature stage (∼1.3–2.0% Ro) during the primary charing time in the Mahu Sag area (Figure 9(b)). The P₁f and C/P₁j source rocks are mature enough to generate and expel significant hydrocarbons, especially the P₁f source rocks, which can generate a larger amount of petroleums for charing the whole study area due to their high hydrocarbon generation capacity with higher total organic content and better organic types. The C/P₁j source units have moderate hydrocarbon generation potential, and the oils derived from them in this period were mainly near-source and accumulated in the Mahu Sag area.

In contrast, the C/P₁j source rocks in the slope area were merely into the mature stage (∼1.0% Ro) (Figure 9(a)), and the oils generated from C/P₁j kitchens in the shallower Zhongguai uplift are believed to be smaller than the deep-buried Mahu Sag zone, which is the reason why almost all of the oils related to the C/P₁j source rocks are found and intensely mixed with P₁f oils in the Mahu Sag, while only a small amount is in the Zhongguai uplift.

A comprehensive oil accumulation model

Oil accumulation in the complex P₃w reservoir is that the different sourced oils are located at their potential zone rather than mixed in all areas. The different stratigraphic distributions of the four sets of source rocks and their distinct thermal histories in different areas contribute to the differential oil charging and mixing. In addition, multistage tectonic activity in the basin created many fracture sets which include: (1) Hercynian to Indosinian thrust faults; (2) Indosinian to Himalayan strike-slip faults; and (3) Indosinian to Yanshanian normal faults (Figure 1(c)) (Kuang et al., 2022; Shao et al., 2011; Tao et al., 2006; Zhang et al., 2010). These fractures serve as critical vertical migration systems for hydrocarbons from multiple source rocks, especially the first two types, and are active in the primary hydrocarbon generation period of the source rocks, which can favor the charging and mixing of hydrocarbons in the reservoirs.

The P₁f source rocks have reached the mature stage in the Mahu Sag in the period of Middle-Late Permian, and in the Late Triassic to Early Jurassic, they were considerrd at the mature to the high-mature stage (∼1.3% Ro) (Cao et al., 2006). The P₁f source rocks were experenced two mainly phase of hydrocarbon charging event and believed to generate and expel a larger amount of petroleums for charing the whole study area, which consist with the P₁f oils distribution in the P₃w reservoirs. The P₁f oils (group I) is exclusive to the Zhongguai uplift and is also mixed with the C/P₁j oils (hybrid group IV oils) in the Mahu sag (Figure 12).

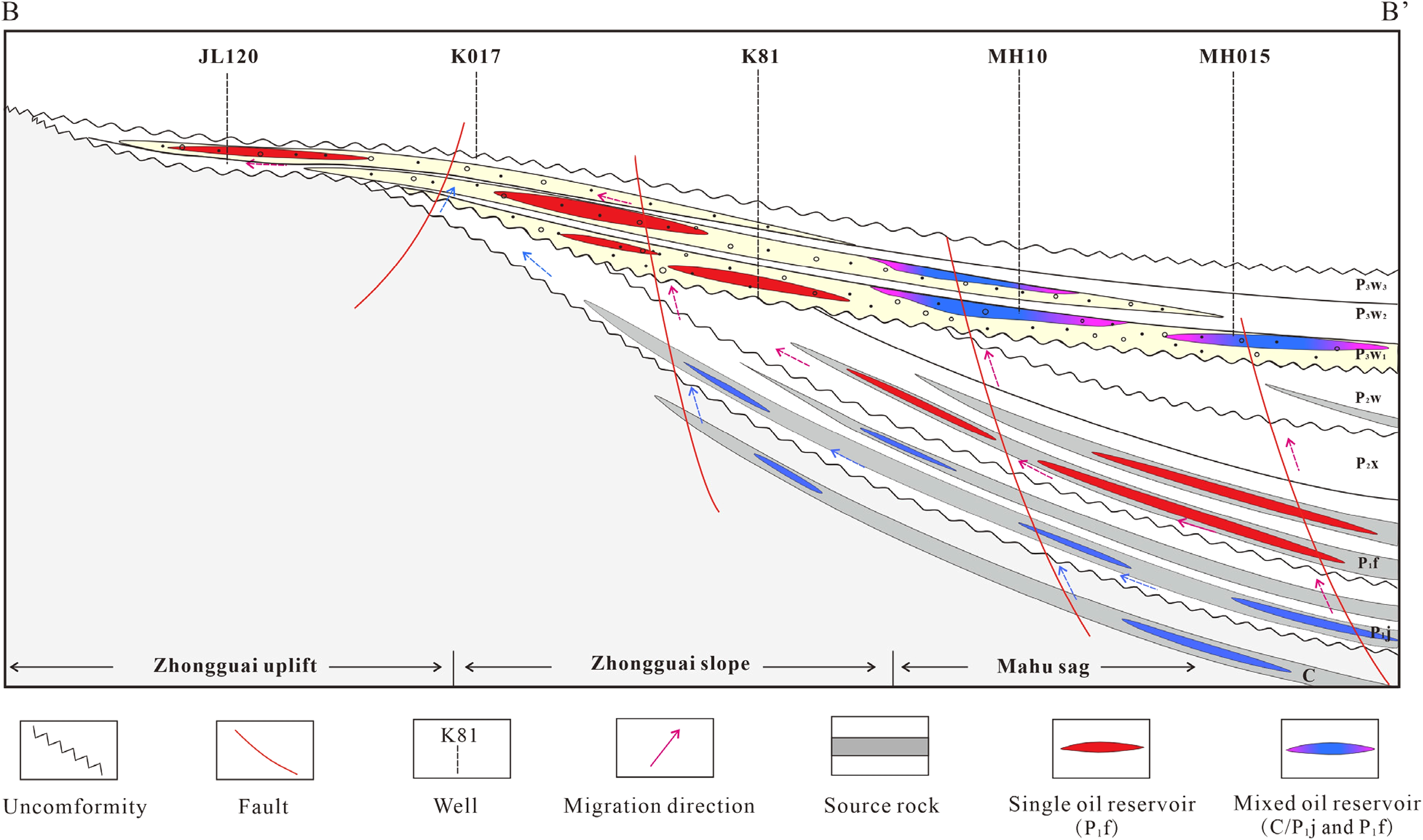

Figure 12.

Cross-section showing the general model for oil accumulation and mixing in the Upper Wuerhe Formation. The location of cross-section BB’ is shown in Figure 1(b). The differently sourced oil reservoirs are displayed in different colors. Red indicates a single genetic group derived from P₁f source rocks, blue mixed pink color indicates a mixed reservoir derived from C/P₁j source rocks and P₁f. C = Carboniferous; P₁j = Lower Permian Jiamuhe Formation; P₁f = Lower Permian Fengcheng Formation.

In the Mahu Sag, significant C/P₁j oils generated during the main hydrocarbon charging stage (Late Triassic to Cretaceous) vertically migrated into the reservoir along the faults, gradually displacing and mixing with the previously charged P₁f oils. The areas near the fault would develop a single-sourced group II oils district dominated by later-charged C/P₁j oils (Figure 12). As the C/P₁j oils gradually decreased in charging capacity as they moved away from the fault center, they began to mix with the early P₁f oils gradually, and show a mixture characteristic of C/P₁j and P₁f oils, forming hybrid group IV oils district near the Mahu Sag (Figure 12). In the Zhongguai uplift, there is little charging and mixing of C/P₁j oils, as it is far from the depositional center of the C/P₁j source unit. Additionally, compared to the P₁f kitchen, the lower hydrocarbon-generating potential of the C/P₁j makes it difficult to distribute large amounts of hydrocarbons to areas far from their hydrocarbon generation center. Therefore, the oils drived from C/P₁j source unit were mainly near-souce accumulated and mixed in the Mahu Sag.

Significance

The conclusion of oil-source correlation of this study indicates that the crude oils come from source rocks formed in different depositional settings, which also implies a multistage evolution of the superimposed basin. The C/P₁j source rocks were geochemically deposited in a nearshore marine or transitional environment with mixed organic matter, including algae, and a significantly higher plant input. This source rock is the result of sedimentation in a remnant ocean basin that developed in the Late Carboniferous, and river inputs influenced it due to its small remnant basin area (Carroll et al., 1990; Zhang et al., 2007). The P₁f was deposited in a hypersaline lacustrine environment, as indicated by its abundant β-carotane and gammacerane. The limited input of higher plants reflects the rapid increase in the lake area and water depth during this period. Water salinity and its reducibility were increased by strong evaporation and water column stratification; consequently, a large amount of organic matter was preserved because of this strongly reducing environment (Cao et al., 2015; Tao et al., 2019; Xia et al., 2021). During the deposition of the source rocks of the P₂w, compared to the depositional period of the P₁f, the water body was less saline, and the P₂w source rocks were deposited in a relatively oxidative proximal freshwater environment dominated by organic matter derived from terrestrial plant material. Therefore, we can infer that from the Carboniferous to the Early Permian, and finally to the Middle Permian, the study area has successively experienced remnant marine basins characterized by transitional facies, reduced hypersaline lacustrine basins, and relatively oxidized freshwater lacustrine basins.

The distribution of hydrocarbons in superimposed basins is complex and difficult to predict owing to multistage hydrocarbon generation and accumulation. This study provides a example of how hydrocarbons accumulate in superimposed basins in the presence of multiple source rocks and multistage hydrocarbon charge events. Although the mixing of oils from different source rocks is common, the intensity of mixing varies in different regions, which is mainly controlled by the different stratigraphic distributions of source rocks and their different burial histories in different areas. The significant accumulation of C/P₁j oils and mixing with the early charing P₁f oils only in the Mahu Sag indicates that they are characterized by (a) near-source accumulation around their source rock depocenter, and (b) greater burial depth and corresponding higher burial thermal history at Mahu Sag. Reactive Hercynian faults and newly formed Indosinian fracture systems acted as the main vertical pathways for oil migration in the primary phase of the oil charging events (Late Triassic). Therefore, although there are multiple sets of source rocks with different depocenters in petroliferous superimposed basins, the hydrocarbons generated by them tend to accumulate near their respective largest hydrocarbon-generating areas.

Conclusions

A comprehensive study of oils in the Upper Wuerhe Formation of the northwestern Junggar Basin indicates that they are derived from mixed sources. Forty-six oil samples were classified into four oil genetic groups using representative molecular and isotopic parameters. The genetic group I oils were generated from source rocks of P₁f with limited higher plant input, and their distribution was wider throughout the study area, ranging from the Zhongguai uplift to Mahu Sag. The genetic group II oils were generated from the source rocks of the Carboniferous and Jiamuhe Formation (C/P₁j) as indicated by their increasing terrigenous organic matter inputs, and their distribution is limited to the Mahu Sag area, coinciding with the depocenter of the C/P₁j source rocks. Group III oils were generated from P₂w mudstone deposited in a highly oxidizing environment with predominantly higher plant inputs; only one sample was found; it is in the slope area. The genetic group IV oils are interpreted as a mixed genetic group derived from P₁f and C/P₁j source rocks; their distribution is mainly limited to the Mahu Sag, with little in the slope and uplift area.

The different occurrences and mixing of various genetic oils are mainly controlled by different stratigraphic distributions and the burial thermal evolutionary history of source rocks in the study area. The significant accumulation of groups II and IV oils related to C/P₁j source rocks in the Mahu Sag is the result of the depocenter of the Carboniferous and Jiamuhe Formation (C/P₁j) and their higher degree of thermal evolution. Our oil-source correlation effort indicates that the hydrocarbons were generated from different kitchens in the superimposed basin and tend to accumulate near the depocenter.

Footnotes

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research,authorship,and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research,authorship,and/or publication of this article: This work was supported by the National Natural Science Foundation of China (grant number 41830425) and PetroChina Science and Technology Major Project (grant number 2021DJ0108).

ORCID iD

Wendong Liu

References

Bian

Zhang

, et al. (2019) Re-characterization of the Dazhuluogou strike-slip fault in northwestern Junggar Basin and the implications for hydrocarbon accumulation. Earth Science Frontiers 26: 238–247.

Cao

Lei

, et al. (2015) Ancient high-quality alkaline lacustrine source rocks discovered in the Lower Permian Fengcheng Formation, Junggar Basin. Acta Petrolei Sinica 36: 781–790.

Cao

Xia

Wang

, et al. (2020) An alkaline lake in the Late Paleozoic Ice Age (LPIA): A review and new insights into paleoenvironment and petroleum geology. Earth-Science Reviews 202: 1–14.

Cao

Yao

Jin

, et al. (2006) Petroleum migration and mixing in the northwestern Junggar Basin (NW China): Constraints from oil-bearing fluid inclusion analyses. Organic Geochemistry 37: 827–846.

Cao

Zhang

, et al. (2005) The Permian hybrid petroleum system in the northwest margin of the Junggar Basin, northwest China. Marine and Petroleum Geology 22: 331–349.

Carroll

Yunhai

Graham

, et al. (1990) Junggar basin, northwest China: Trapped Late Paleozoic ocean. Tectonophysics 181: 1–14.

Chen

Shu

, et al. (2002) Study on tectonic evolution of Junggar Basin. Geological Journal of China Universities 8: 257–267.

Chen

Cheng

Zhang

, et al. (2018) Fault characteristics and control on hydrocarbon accumulation of middle-shallow layers in the slope zone of Mahu sag, Junggar Basin, NW China. Petroleum Exploration and Development 45: 1050–1060.

Damsté

JSS

Kenig

Koopmans

, et al. (1995) Evidence for gammacerane as an indicator of water column stratification. Geochimica et Cosmochimica Acta 59: 1895–1900.

10.

Grantham

Wakefield

(1988) Variations in the sterane carbon number distributions of marine source rock derived crude oils through geological time. Organic Geochemistry 12: 61–73.

11.

Wang

Cao

, et al. (2020) Formation conditions and exploration direction of large and medium gas reservoirs in the Junggar Basin, NW China. Petroleum Exploration and Development 47: 266–279.

12.

Huang

Wan

Zou

, et al. (2022) Accumulation characteristics of continuous sand conglomerates reservoirs of upper permian upper wuerhe formation on Manan slope area,Junggar Basin. Petroleum Geology & Experiment 44: 51–59.

13.

Huang

Ren

, et al. (2016) Biomarker and carbon isotopic compositions of source rock extracts and crude oils from Mahu sag, Junggar Basin. Geochimica 45: 303–314.

14.

Irwin

Meyer

(1990) Lacustrine organic facies. A biomarker study using multivariate statistical analysis. Organic Geochemistry 16: 197–210.

15.

Jackson

(2005) Glossary of Geology. Alexandria, Virginia: American Geological Institute.

16.

Jun

Yong

Tao

, et al. (2020) Overpressure origin and its effects on petroleum accumulation in the conglomerate oil province in Mahu Sag, Junggar Basin, NW China. Petroleum Exploration and Development 47: 726–739.

17.

Kuang

Zhi

Wang

, et al. (2022) Hydrocarbon accumulation conditions and exploration directions of large-scale lithologic-stratigraphic oil and gas reservoirs in Upper Wuerhe Formation of Upper Permian in Junggar Basin. Acta Petrolei Sinica 43: 325–340.

18.

Lei

Chen

Liu

, et al. (2017) Study on the forming conditions and exploration fields of the Mahu giant oil (gas) province, Junggar Basin. Acta Geologica Sinica 91: 1604–1619.

19.

Tang

20.

Liu

(2007) Geologic characteristics and petroleum accumulation conditions of superimposed basins. Acta Petrolei Sinica 28: 1–7.

21.

Xia

(2004) An obvious example of redox reaction in the process of oil and gas generation—the formation of carotane. Acta Sedimentologica Sinica 22: 124–128.

22.

Ren

Wang

, et al. (2015) Geochemical characteristics of Permian source rocks in Mahu sag. Geological Review 61: 246–247.

23.

Mello

Telnaes

Gaglianone

, et al. (1988a) Organic Geochemical Characterisation of Depositional Palaeoenvironments of Source Rocks and Oils in Brazilian Marginal Basins, Organic Geochemistry in Petroleum Exploration. Pergamon: Elsevier, 31–45.

24.

Mello

Gaglianone

Brassell

, et al. (1988b) Geochemical and biological marker assessment of depositional environments using Brazilian offshore oils. Marine and Petroleum Geology 5: 205–223.

25.

Moldowan

Seifert

Gallegos

(1985) Relationship between petroleum composition and depositional environment of petroleum source rocks. AAPG Bulletin 69: 1255–1268.

26.

Noble

Alexander

Kagi

, et al. (1986) Identification of some diterpenoid hydrocarbons in petroleum. Organic Geochemistry 10: 825–829.

27.

Palmer

(1984) Hydrocarbon source potential of organic facies of the lacustrine Elko Formation (Eocene/Oligocene), northeast Nevada. In: Woodward

Meissner

Clayton

(eds) Hydrocarbon Source Rocks of the Greater Rocky Mountain Region. Nevada: Rocky Mountain Association of Geologists, 491–511.

28.

Pang

Zhou

Yan

, et al. (2012) Research advances and direction of hydrocarbon accumulation in the superimposed basins, China: Take the Tarim Basin as an example. Petroleum Exploration and Development 39: 692–699.

29.

Peters

Snedden

Sulaeman

, et al. (2000) A new geochemical-sequence stratigraphic model for the Mahakam Delta and Makassar Slope, Kalimantan, Indonesia. AAPG Bulletin 84: 12–44.

30.

Peters

Walters

Moldowan

(2007) The Biomarker Guide: Volume 2, Biomarkers and Isotopes in Petroleum Systems and Earth History. Cambridge: Cambridge University Press.

31.

Philp

Gilbert

(1986) Biomarker distributions in Australian oils predominantly derived from terrigenous source material. Organic Geochemistry 10: 73–84.

32.

Qin

Zhi

(2022) Organic petrology, geochemistry, and hydrocarbon generation capacity of Permo–Carboniferous source rocks in the Mahu Sag, northwestern Junggar Basin, China. Energy Exploration & Exploitation 40: 57–78.

33.

Robinson

(1987) An overview of source rocks and oils in Indonesia. In: Indonesian Petroleum Association Proceedings, 16th Annual Convention, pp.97–122.

34.

Shao

Wang

Zhang

, et al. (2011) Strike-slip structures and oil-gas exploration in the NW margin of the Junggar Basin, China. Acta Petrolei Sinica 32: 976–984.

35.

Tang

Guo

Wang

, et al. (2019) A new breakthrough in exploration of large conglomerate oil province in Mahu Sag and its implications. Xinjiang Petroleum Geology 40: 1–1.

36.

Tang

, et al. (2018) Sedimentation model and exploration significance of large-scaled shallow retrogradation fan delta in Mahu Sag. Xinjiang Petroleum Geology 39: 1–8.

37.

Tang

Zheng

Wang

, et al. (2022) Sedimentary paleoenvironment of source rocks of Fengcheng Formation in Mahu Sag，Junggar Basin. Natural Gas Geoscience 33: 677–692.

38.

Tao

Zhang

, et al. (2006) NW-trending transverse faults and hydrocarbon accumulation in the northwestern margin of Junggar Basin. Acta Petrolei Sinica 27: 23–28.

39.

Tao

Cao

Chen

, et al. (2019) Deep hydrocarbons in the northwestern Junggar Basin (NW China): Geochemistry, origin, and implications for the oil vs. gas generation potential of post-mature saline lacustrine source rocks. Marine and Petroleum Geology 109: 623–640.

40.

Tao

Cao

, et al. (2021) Petroleum system for the continuous oil play in the lacustrine Lower Triassic, Junggar Basin, China. AAPG Bulletin 105: 2349–2380.

41.

Thompson

KFM

(1983) Classification and thermal history of petroleum based on light hydrocarbons. Geochimica et Cosmochimica Acta 47: 303–316.

42.

Wang

Pang

Chen

, et al. (2019) Statistical evaluation and calibration of model predictions of the oil and gas field distributions in superimposed basins: A case study of the Cambrian Longwangmiao Formation in the Sichuan Basin, China. Marine and Petroleum Geology 106: 42–61.

43.

Wang

(2001) On the oil source of the Mabei oilfield, northwest Junggar Basin. Journal of Southwest Petroleum University (Science & Technology Edition) 23: 6–8.

44.

Wang

Kang

(1999) Analysis of crude origin in hinterland and slope of northwestern margin, Junggar Basin. Xinjiang Petroleum Geology 20: 108–112.

45.

Wang

Song

Zheng

, et al. (2021) Composite petroleum system and multi-stage hydrocarbon accumulation in Junggar Basin. China Petroleum Exploration 26: 29–43.

46.

Waples

Machihara

(1990) Application of sterane and triterpane biomarkers in petroleum exploration. Bulletin of Canadian Petroleum Geology 38: 357–380.

47.

Xia

Cao

Bian

, et al. (2022) Co-evolution of paleo-environment and bio-precursors in a Permian alkaline lake, Mahu mega-oil province, Junggar Basin: Implications for oil sources. Science China Earth Sciences 65: 462–476.

48.

Xia

Cao

Lee

, et al. (2021) A new constraint on the antiquity of ancient haloalkaliphilic green algae that flourished in a ca. 300 Ma Paleozoic lake. Geobiology 19: 147–161.

49.

Wang

Xiang

, et al. (2017) Molecular and carbon isotopic geochemistry of crude oils and extracts from Permian source rocks in the northwestern and central Junggar Basin, China. Organic Geochemistry 113: 27–42.

50.

Zhang

Wang

(2000) Geochemistry of crude oil and oilsource analysis of Junggar Basin. China Petroleum Exploration 5: 30–35.

51.

Zhang

Cao

(2010) Timing of petroleum accumulation and the division of reservoir-forming assemblages, Junggar Basin, NW China. Petroleum Exploration and Development 37: 257–262.

52.

Zhang

Cheng

, et al. (2007) Approach to sedimentary environment of Late Carboniferous-Permian in Junggar basin. Xinjiang Petroleum Geology 28: 673–675.

53.

Zhang

Wang

(1999) The basement structure, the formation and the evolution of the Junggar Basin. Xinjiang Petroleum Geology 20: 568–571.

54.

Zhang

Jin

, et al. (2022) Assessing source and maturity of oils in the Mahu sag, Junggar Basin: Molecular concentrations, compositions and carbon isotopes. Marine and Petroleum Geology 141: 105724.

55.

Zhang

Yuan

Wang

, et al. (2018) Alkaline-lacustrine deposition and paleoenvironmental evolution in Permian Fengcheng Formation at the Mahu Sag, Junggar Basin, NW China. Petroleum Exploration and Development 45: 1036–1049.

56.

Zheng

Fan

, et al. (2019) Superposition of deep geological structural evolution and hydrocarbon accumulation in the Junggar Basin. Earth Science Frontiers 26: 22–32.

57.

Zhi

Tang

, et al. (2021) Orderly coexistence and accumulation models of conventional and unconventional hydrocarbons in Lower Permian Fengcheng Formation, Mahu Sag, Junggar Basin. Petroleum Exploration and Development 48: 43–59.

58.

Zhi

Tang

Zheng

, et al. (2018) Discovery, distribution and exploration practice of large oil provinces of above-source conglomerate in Mahu Sag. Xinjiang Petroleum Geology 39: 1–8.

59.

Zou

Zhang

Shi

, et al. (2021) Formation conditions and main controlling factors of hydrocarbon accumulation of the upper Wuerhe Formation of Permian in Zhongguai Uplift, Junggar Basin. Natural Gas Geoscience 32: 540–550.

Source identification and accumulation restoration of complex oil reservoirs in Mahu Sag,Junggar Basin

Abstract

Keywords

Introduction

Geological setting

Samples and methods

Results

Bulk properties of crude oil

Carbon isotopes of crude oil

Molecular geochemistry of crude oil

Discussion

Identification signatures of source rocks

Source identification of crude oils

Source of group I oils (P1f)

Source of group II oils (C/P1j)

Source of group III oils (P2w)

Source of group IV oils (C/P1j mixed P1f)

Spatial distribution of the different crude oil types

Constrain factors and accumulation restoration

Source rock distribution controlled oil near-source accumulation

Buried-thermal evolution history controlled oil charging and mixing

A comprehensive oil accumulation model

Significance

Conclusions

Footnotes

Declaration of conflicting interests

Funding

ORCID iD

References

Source of group I oils (P₁f)

Source of group II oils (C/P₁j)

Source of group III oils (P₂w)

Source of group IV oils (C/P₁j mixed P₁f)
