Abstract

As an industrial communication data interaction specification, OPC Unified Architecture effectively solves the industrial Internet of Things system integration problem. This article designs an authentication and key agreement scheme based on implicit certificate using the security model provided by OPC Unified Architecture. It establishes the secure channel and provides a guarantee for secure session for the OPC Unified Architecture server and client. Then, the test verification platform is implemented to verify the feasibility of the scheme. The result shows that the mechanism is feasible, and the system security and availability are effectively improved.

Keywords

OPC Unified Architecture industrial Internet of Things security authentication key agreement

Introduction

Industrial Internet of Things (IIoT) is a network of field devices, actuator, and intelligent computers that collect and share huge amounts of data in manufacturing. Connectivity is one of the foundational technologies enabling data sharing among participating components of an IIoT system. As a connectivity framework standard, OPC Unified Architecture (OPC UA) facing device interchangeability issues has been used in the manufacturing industry. OPC UA is designed to support multiple transports and can provide a consistent and complete address space and service model, which contains a series of services. The OPC Foundation¹ maintains the OPC UA family of specifications.

The openness of IIoT incurs more threats and risks, and security issues have become the main obstacle to the development of IIoT. In order to ensure the confidentiality, integrity, and availability between client and server, OPC UA specification provides a security framework for the secure and reliable transmission from manufacturing level to production planning or enterprise management level.² However, IIoT system components run on a variety of platforms, from small resource-constrained to enterprise-class machines. It is challenging to develop light security mechanism to support the devices being used, in which the computing capability and storage capacity are limited. For the security, it is urgent to design and implement an effective authentication and key agreement mechanism for resource-constrained devices based on OPC UA.

Several previous studies have been conducted on this issue. S Cavalieri and G Cutuli³ aimed to deal with the performance evaluation of OPC UA, considering both security and subscription mechanisms. A Fernbach and W Kastner⁴ aimed to give a discussion about how the structure of the environmental system where OPC UA applications are installed, the resources available, and a request to dependability shall affect the strategy of managing certificates, which provided a theoretical basis for the optimization of OPC UA security mechanism. O Post et al.^5,6 discussed the security at device level of automation system and implemented a new authentication-only security policy profile or using OPC UA for data transfer and IPsec for authentication is proposed. KH Wu et al.⁷ proposed a new security communication model to provide integrity and authentication in OPC UA; through this model that uses the Whirlpool hash function to check integrity and generates digital signature along with Rivest–Shamir–Adleman (RSA) in message transmission, terminals in the upper layer can communicate with field devices via a channel with high security and efficiency. Given the security of RSA, the key length needs to be increased to enhance the security strength of RSA.⁸ It may limit the application of RSA in the system with limited computing capability. Several studies have been conducted on implicit certificates. S Sciancalepore and colleagues^9,10 proposed a key management protocol which suitably integrates implicit certificates with Elliptic Curve Diffie–Hellman (ECDH) exchange in the IEEE 802.15.4 protocol. Park¹¹ proposed an ECQV certificate issuance protocol that addresses the problems of the previous PAuthKey protocol. DA Ha et al.¹² designed and implemented a security scheme based on ECQV Implicit Certificates and compared the execution time of public key extraction operation with the RSA certificates.

At present, with the rapid development of IIoT, a large number of resource-constrained devices with limited communication, energy, and bandwidth are used. According to the security model of OPC UA, it is the key of solving problem to design and implement a low overhead authentication and key agreement mechanism. In this article, according to the security model defined by the OPC UA specification, a new authentication and key agreement mechanism based on implicit certificate is designed for authentication requirements between OPC UA client and server.

OPC UA security mechanism

OPC UA divides system software into clients and servers. The servers usually reside on a device; they provide a way to access the device through a standard “device model.” The servers expose an object-oriented, remotely callable Application Programming Interface (API) that implements the device model. Certificate authority (CA) is responsible for issuing digital certificates for OPC UA clients and servers.

OPC UA security model is proposed in the OPC UA specification part 2.¹³ In order to implement the OPC UA security model, five security service functions are provided in the OPC UA security specification, which are related to the security channel and the session.

The establishment of secure channel is the basis of OPC UA security mechanism. The purpose of secure channel establishment is to derive a symmetric key by exchanging private information between OPC UA client and server. Only the connection between the client and the server is established; the message transmission, encryption, and decryption works will be executed. The specific process of establishing a secure channel is shown in Figure 1.

Figure 1.

The process of establishing a secure channel.

RSA algorithm is used for signing or encryption in OPC UA. However, a large number of numerical operations using RSA algorithm are needed in the process of calculation of encryption, decryption, signature, and verifying signature. In addition, OPC UA relies on the Public Key Infrastructure (PKI) to manage keys used for symmetric and asymmetric encryption, which requires complex certificate management, high computing, and storage overhead. It is difficult to be implemented and used in the resource-constrained and highly real-time environment.

Security authentication and key agreement mechanism

Authentication and key agreement mechanism based on implicit certificate

In this article, an authentication and key agreement scheme-based implicit certificate is proposed, which consists of two parts: the generation of implicit certificate and the establishment of secure channel. The symbols used in this scheme are described in Table 1.

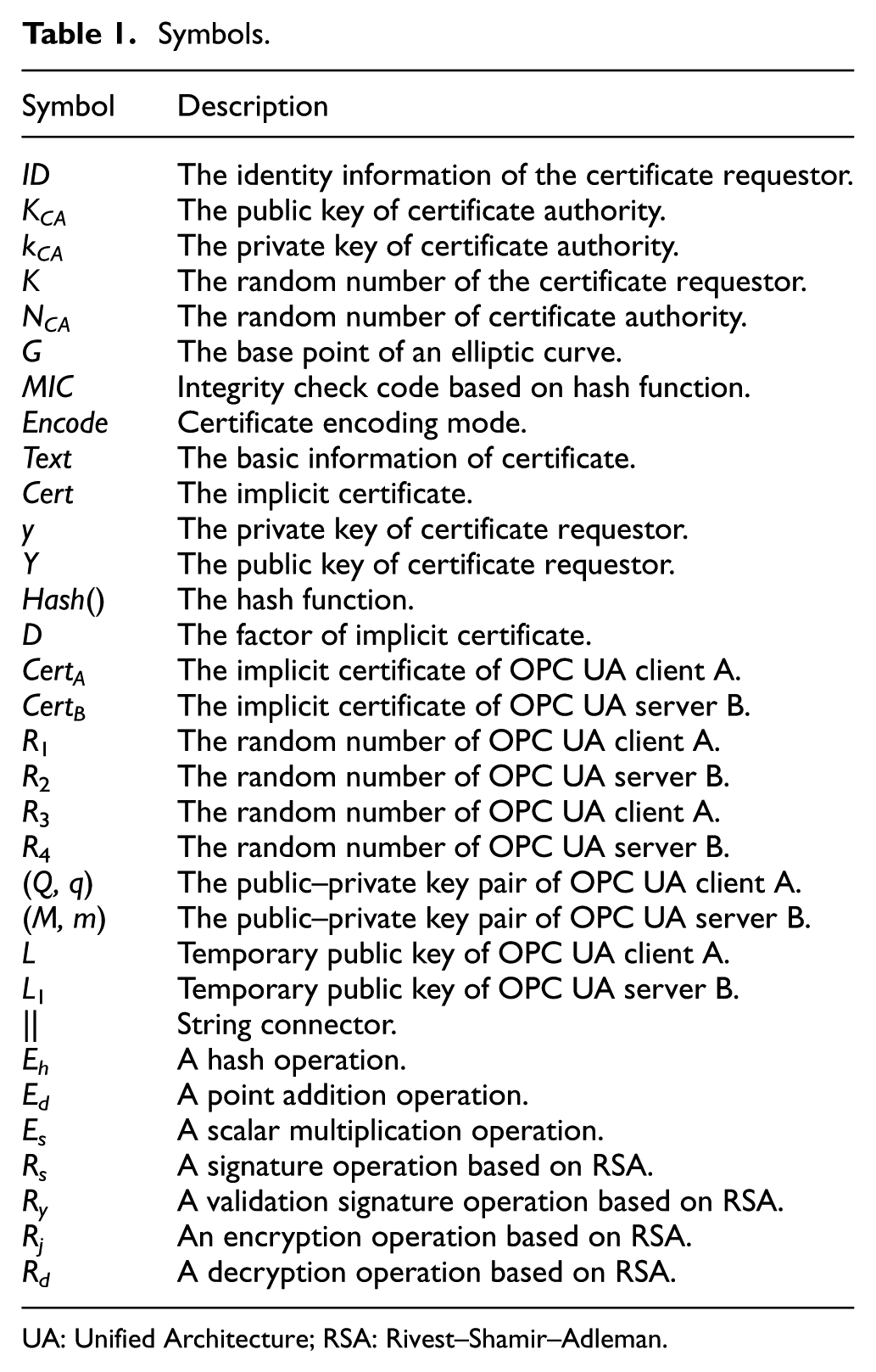

Table 1.

Symbols.

Symbol	Description
ID	The identity information of the certificate requestor.
K_CA	The public key of certificate authority.
k_CA	The private key of certificate authority.
K	The random number of the certificate requestor.
N_CA	The random number of certificate authority.
G	The base point of an elliptic curve.
MIC	Integrity check code based on hash function.
Encode	Certificate encoding mode.
Text	The basic information of certificate.
Cert	The implicit certificate.
y	The private key of certificate requestor.
Y	The public key of certificate requestor.
Hash()	The hash function.
D	The factor of implicit certificate.
Cert_A	The implicit certificate of OPC UA client A.
Cert_B	The implicit certificate of OPC UA server B.
R ₁	The random number of OPC UA client A.
R ₂	The random number of OPC UA server B.
R ₃	The random number of OPC UA client A.
R ₄	The random number of OPC UA server B.
(Q, q)	The public–private key pair of OPC UA client A.
(M, m)	The public–private key pair of OPC UA server B.
L	Temporary public key of OPC UA client A.
L ₁	Temporary public key of OPC UA server B.
\|\|	String connector.
E_h	A hash operation.
E_d	A point addition operation.
E_s	A scalar multiplication operation.
R_s	A signature operation based on RSA.
R_y	A validation signature operation based on RSA.
R_j	An encryption operation based on RSA.
R_d	A decryption operation based on RSA.

UA: Unified Architecture; RSA: Rivest–Shamir–Adleman.

The generation of implicit certificate

The generation process of implicit certificate is similar to digital certificates. First of all, OPC UA client or server generates the material used to construct the public key and transfers the public key material and the identity information ID to the CA. Then, CA begins to verify the identity information ID; if the verification is successful, the next operation is performed, otherwise the interaction is terminated. According to the public key material, CA constructs an implicit certificate which contains the parameters to reconstruct the public key. The specific process is shown in Figure 2, which includes three steps:

Step 1. First, requestor U produces a large prime number K as its own private key and calculates its own public key R = KG. Second, according to hash function, an integrity check code is calculated, MIC = Hash(ID||R). Finally, requestor U generates a request for an implicit certificate, which is sent to CA.

Step 2. After CA receives the request message, the integrity check code is verified; if the verification is not successful, the communication is terminated; conversely, the following operations will be performed:

CA generates a random number N_CA and calculates the implicit certificate factor D = R+N_CAG.

According to the implicit certificate factor, an implicit certificate is constructed, Cert = Encode(D,Text); Text is the basic information of the certificate, such as requestor identity information and serial number of certificate.

Calculate the abstract value of implicit certificate e = Hash(Cert) and signature s = eN_CA +k_CA(mod n).

Finally, CA generates a response message for an implicit certificate, which is sent to requestor U.

Step 3. After requestor U receives the response message, the source of the certificate needs to be verified by calculating Hash(Cert)R+sG = Hash(Cert)D+K_CA; if the verification is not successful, the communication is terminated, otherwise requestor U can calculate own public key pair by the implicit certificate and signature:

Private key: y = eK+s(mod n)

Public key: Y = eD+K_CA

Figure 2.

The issuance process of implicit certificate.

Establishment of secure channel

An authentication and key agreement scheme based on implicit certificate is proposed in this section. It ensures OPC UA secure channel can be successfully established. It is assumed that the OPC UA client is A and the server is B in IIoT. The specific scheme is shown in Figure 3, which includes four steps:

Step 1. GetEndpoints request service

OPC UA client A reads the endpoint information of OPC UA server B by GetEndpoints request service. Not required if OPC UA client A is preconfigured with knowledge of server policies.

Step 2. GetEndpoints response service

After OPC UA server B receives the GetEndpoints request service, the security configuration information is sent to OPC UA client A by GetEndpoints response service. The security configuration information includes server certificate, security mode, and security policy.

Step 3. Two-way authentication

In the two-way authentication step, the process includes calculating temporary public key and validating integrity check codes for both sides:

Calculate temporary public key

After OPC UA client A receives the GetEndpoints response service, OPC UA client A generates a random number R1. Moreover, the temporary public key of OPC UA client A is calculated as shown in formula (1)

$L = R_{1} G$ (1)

According to hash function, an integrity check code is calculated, MIC = Hash(L||Cert_A). OPC UA client A generates a message L||Cert_A||MIC, which is sent to OPC UA server B.

Validate MIC code

After OPC UA server B receives the message L||Cert_A||MIC, RMIC is calculated in a prescribed manner as shown in formula (2)

$RMIC = Hash (L | | Cer t_{A})$ (2)

If RMIC and MIC are not equal, the message L||Cert_A||MIC should be discarded; on the contrary, OPC UA client’s public key is extracted according to the implicit certificate Cert_A, as shown in formula (3)

$Q = eD + K_{CA}$ (3)

where e = Hash(Cert_A).

A random number R₂ is generated; according to hash function, then, an integrity check code is calculated, MIC₁ = Hash(R₂). OPC UA server B generates a message R₂||MIC₁, which is sent to OPC UA client A.

Validate MIC₁ code

After OPC UA client A receives the message R₂||MIC₁, RMIC₁ is calculated in a prescribed manner as shown in formula (4)

$RMI C_{1} = Hash (R_{2})$ (4)

If RMIC₁ and MIC₁ are not equal, the message R₂||MIC₁ should be discarded; on the contrary, parameter V is calculated as shown in formula (5)

$V = R_{1} + R_{2} q$ (5)

where q is the client’s private key.

A random number R₃ is generated; according to hash function, then, an integrity check code is calculated, MIC₂ = Hash(R₃||V). OPC UA client A generates a message R₃||V||MIC₂, which is sent to OPC UA server B.

Validate MIC₂ code

After OPC UA server B receives the message R₃||V||MIC₂, RMIC₂ is calculated in a prescribed manner as shown in formula (6)

$RMI C_{2} = Hash (R_{3} | | V)$ (6)

If RMIC₂ and MIC₂ are not equal, the message R₃||V||MIC₂ should be discarded; on the contrary, VG and R₂Q+L are calculated and then judged to be equal; if not equal, the identity authentication of OPC UA client A fails, and the communication is directly terminated. On the contrary, OPC UA server B generates a new random number R₄, and the temporary public key L₁ and parameter V₁ are calculated as shown in formulas 7 and (8)

$L_{1} = R_{4} G$ (7)

$V_{1} = R_{4} + R_{3} m$ (8)

where m is the own private key; according to hash function, an integrity check code is calculated, MIC₃ =Hash(V₁||L₁). OPC UA server B generates a message V₁||L₁||MIC₃, which is sent to OPC UA client A.

Validate MIC₃ code

After OPC UA server B receives the message V₁||L₁||MIC₃, RMIC₃ is calculated in a prescribed manner as shown in formula (9)

$RMI C_{3} = Hash (V_{1} | | L_{1})$ (9)

If RMIC₃ and MIC₃ are not equal, the message V₁||L₁||MIC₃ should be discarded.

OPC UA server’s public key is extracted according to the implicit certificate Cert_B, as shown in formula (10)

$M = e_{1} D_{1} + K_{CA}$ (10)

where e₁ = Hash(Cert_B).

Whereafter, V₁G and R₃M+L₁ are calculated and then judged to be equal; if not equal, the identity authentication of OPC UA server B fails, and the communication is directly terminated. On the contrary, two-way authentication is completed.

Step 4. Key agreement

If the two-way authentication is completed, a symmetric key that can be used for message encryption or signature in the session service can be derived based on ECDH key exchange protocol, as shown in formula (11)

$qM + L + L_{1} = mQ + L + L_{1}$ (11)

Figure 3.

The process of secure channel establishment.

Scheme testing and result analysis

Testing platform implementation

In order to verify the authentication and key agreement scheme which has been designed and developed in this article, the testing platform is built, as shown in Figure 4.

Figure 4.

The testing platform.

For the purpose of performance evaluation, we run the implementation of the proposed scheme in the following platform: RT5350 device (360 MHz MIPS24KEc CPU core, 32 MB RAM), CA runs on a resource-rich computer with Intel^® Core(5) Quad CPU Q9400 2.6 GHz and 4 GB RAM, and implicit certificate application client run on a resource-rich computer with Intel Core(3) Quad CPU Q9400 1.8 GHz and 2 GB RAM. PC plays the role of OPC UA client and RT5350 plays the role of OPC UA server. Wireshark is used to sniff the interaction message between OPC UA client and server. OPC UA stack includes OpenSSL¹⁴ library that provide the API of many algorithms.

The proposed scheme adopts ECC (Elliptic Curve Diffie–Hellman) 160 algorithm. The hash algorithm is implemented by invoking the SHA-1 using the OpenSSL library [OpenSSL 2014] on PC. And we use our own software to implement HASH SHA-1 on RT5350 device.

According to the testing platform, the authentication and key agreement scheme designed in this article is implemented.

This scheme mainly contains the following:

GetEndpoints request service and GetEndpoints response service.

Two-way authentication between OPC UA client and server.

The purpose of the test is to make sure that this authentication and key agreement scheme works in accordance with the design process. GetEndpoints request message information, GetEndpoints response message information, and four authentication messages are captured by Wireshark capture tool. The result is shown in Figure 5.

Figure 5.

(a) The message information of GetEndpoints request, (b) the message information of GetEndpoints response, (c) first authentication message information, (d) second authentication message information, (e) third authentication message information, and (f) fourth authentication message information.

GetEndpoints request service is implemented correctly according to Figure 5(a); GetEndpoints response service is also implemented correctly according to Figure 5(b); similarly, two-way authentication service is implemented correctly according to Figure 5(c)–(f).

Result analysis

In order to evaluate the authentication and key agreement scheme, some performance indices are chosen, which are classified into security and effectiveness according to Fan and Lu¹⁵ and Yang et al.¹⁶ The security performance indices include forward security, known key security, non-key control, zero knowledge of interaction information, and the ability to resist attacks; the effectiveness performance indices include computing overhead, communication overhead, and storage overhead. Next, this scheme will be discussed in terms of security and effectiveness.

The security analysis

This scheme ensures that IIoT has the forward security, the known key security, the zero knowledge of interaction information, and the non-key control ability; meanwhile, this scheme can resist the attack of the middleman attack, replay attack, and so on.

In this scheme, different random values are used in each key agreement process, such as temporary public key L and L₁. In the case of long term, private key of OPC UA client A and server B is obtained by the attacker, and the attacker cannot derive the key obtained before the disclosure of the private key, thus this scheme ensures the forward security.

Even though attackers know last session key, owing to the change in temporary public key L₁ and the confidentiality of private key, the attacker is unable to push the current session key, and therefore, this scheme has known key security.

Meanwhile, the attacker is unable to calculate the symmetric key by these interaction information. Thus, this scheme has zero knowledge of interaction information. The symmetric key generation depends on the temporary public key of OPC UA client A and server B, long-term public keys Q and M, and the private key information q and m, which shows that OPC UA client A and server B make an equal contribution in the symmetric key generation. Therefore, this scheme has the ability of non-key control.

The middleman attack is the biggest security vulnerability of the ECDH key exchange protocol, and the reason is lack of the identity authentication of the participants. In this scheme, if communication parties want to establish communication, the identity authentication must be performed. In the process of identity authentication and key agreement, some private parameters are used, such as random numbers R₁ and R₄ and private keys q and m. The attacker is unable to obtain these private parameters, that is, these effective consultation information cannot be forged. Replay attacks can also be resisted using random numbers.

The effectiveness analysis

The performance analysis of authentication and key agreement scheme based on implicit certificate mainly consists of three parts: computation overhead, communication overhead, and storage overhead. Furthermore, this article also increases the comparison with other schemes.

Computational overhead analysis

First of all, the computational overhead of this scheme is compared with OPC UA scheme. The theoretical comparison result is shown in Table 2.

Table 2.

Computational overhead comparison result.

Object	This scheme	Original OPC UA scheme
OPC UA server	4E_h+2E_d+4E_s	R_s+R_d+R_j+2R_y

UA: Unified Architecture.

As can be seen from Table 2, the computational overhead is the sum of 4E_h, 2E_d, and 4E_s. According to ECC algorithm, the computational overhead of this scheme can be equivalent to twice cryptographic operations of ECC and 4E_h. For OPC UA scheme, its computational overhead is the sum of 1R_s, R_d, R_j, and 2R_y. According to Verma et al.,⁸ the encryption and signature operations of ECC algorithm are better than RSA algorithm under the same security intensity. Furthermore, there are hash operations in signature and validation signature operation. Therefore, the computational overhead of this scheme is acceptable.

Second, the actual computational cost of OPC UA server is also tested using the testing platform (see Figure 4). The main function of the scheme is to establish a secure channel, that is to say, the execution time of the program can be used to quantify the computational complexity of secure channel establishment. Therefore, time point T₁ is set when OPC UA client A initiates the GetEndpoints request; time point T₂ is set before completing the session service. T₂ − T₁ is calculated.

Similarly, the computational overhead for the IoT device to establish secure channel can be obtained as shown in Figure 6.

Figure 6.

The comparison results of computational overhead.

The computational overhead cost is 310 ms when the security policy is chosen as Basic 256. The time cost of this proposed scheme is 390 ms using this ECC 160. In comparison, this proposed scheme computational overhead is higher than the Basic 256 security policy. As shown in Table 3, in Ha et al.,¹² which is implemented in Beaglebone black revision C boards (1 GHz ARM Cortex-A8, 512 MB RAM), the time that is needed for the IoT device using ECDH-ECQV to finish secure key establishment phase is 49.964 ms, and the time for DHE-RSA is 827.463 ms. Therefore, the handshake overhead of the proposed scheme is better than DHE-RSA and worse than the ECDH-ECQV in Ha et al.¹²

Table 3.

Scheme description.

Scheme	DHE-RSA¹²	ECDH-ECQV¹²	The proposed scheme ECC 160
Platform	Beaglebone boards	Beaglebone boards	RT5350
CPU	1 GHz	1 GHz	360 MHz
Overhead	0.827 s	0.04995 s	0.39 s

However, the security strength of ECC 160 is better than the Basic 256 security policy, and the key with 1024 bits length is no longer security for RSA algorithm.^17,18 Meanwhile, the IIoT devices rarely need to perform this phase. Therefore, the proposed scheme is still a valid replacement for the scheme from OPC UA even though more computational overhead is costly. We will consider the ECDH-ECQV and other possible algorithms to be introduced in OPC UA and compare the work with them in same platform in the future.

Storage overhead analysis

First of all, the storage overhead of this scheme is compared with original OPC UA scheme. The theoretical storage overhead of OPC UA server mainly considers some security material discussed in this above section. The theoretical comparison result is shown in Table 4.

Table 4.

Storage overhead comparison result.

Object	Security material	Length (byte)
This scheme	Private key	20
This scheme	Implicit certificate Cert_B	46
Original OPC UA scheme	Private key	128
	Digital certificate Cert	256
	Certificate trusted list	a
	Certificate revocation list	b

UA: Unified Architecture.

As can be seen from Table 4, the storage overhead of OPC UA server is about 66 bytes in this scheme; the storage overhead of original OPC UA server is about (384+a+b) bytes in OPC UA scheme, in which a and b depend on the network size. In addition, with the expansion of IIoT, the storage overhead of OPC UA scheme will continue to increase. Therefore, this scheme has better performance in terms of storage overhead.

Second, the actual storage overhead of OPC UA server is also tested using the testing platform (see Figure 4). The actual storage overhead mainly refers to the comparison of the code storage in two cases including the security mechanism and without the security mechanism. The specific testing process is as follows:

Compile the OPC UA protocol stack without the security mechanism to view code storage.

Compile the OPC UA protocol stack including the security mechanism to view code storage.

Compare the results from (1) and (2).

As shown in Figure 7, the code storage without the security mechanism is 468.5 kB, and the code storage with this scheme is 481.2 kB. The implementation for this proposed scheme based on implicit certificates requires 12.7 kB of ROM, whereas the protocol based on implicit certificates⁹ requires 12.240 kB of ROM, and the protocol implementation based on X.509 explicit certificates⁹ for benchmarking purposes uses 15.192 kB of ROM. The overhead in ROM for the proposed scheme is acceptable.

Communication overhead analysis

Figure 7.

The storage overhead analysis result.

The communication overhead of OPC UA server mainly comes from the message interaction in the authentication phase. Under the condition of security level 80, that is, the key length of ECC is 160 bits, the key length of RSA is 1024 bits. The communication overhead of the two schemes is compared as shown in Table 5.

Table 5.

Communication overhead comparison result.

Scheme	Interaction message	Data length (byte)
This scheme	Cert_B	46
	R ₂ \|\|MIC ₁	40
	V ₁ \|\|L ₁ \|\|MIC ₃	80
Original OPC UA scheme	Digital certificate Cert	256
Original OPC UA scheme	Epb(Nonce)\|\|Epv(Hash(Nonce))	256

UA: Unified Architecture.

As can be seen from Table 5, the communication overhead of OPC UA server is about 166 bytes in this scheme; the communication overhead of OPC UA server is about 512 bytes in original OPC UA security scheme. In summary, compared with the OPC UA scheme, this scheme has better performance. The actual communication overhead of OPC UA server is also tested using the testing platform (see Figure 4). The specific testing process is as follows:

When OPC UA protocol is not added to this scheme, the message information sent by OPC UA server is counted by Wireshark.

When OPC UA protocol is added to this scheme, the message information sent by OPC UA server is counted by Wireshark.

Compare the results from (1) and (2).

As can be seen from Figure 8, the communication overhead of this scheme is less than the communication overhead of OPC UA scheme in the GetEndpoints phase and authentication phase.

Comparison analysis with other schemes

Figure 8.

The communication overhead analysis result.

In order to verify adequately the feasibility and superiority of this scheme, the scheme is also compared with other schemes. In terms of performance, the comparison result is shown in Table 6.

Table 6.

Scheme comparison result.

This scheme	Hafizul Islam and Biswas¹⁹	Yang²⁰	Liao and Hsiao²¹
4E_h+2E_d+5E_s	6E_h+4E_d+4E_s	5E_h+2E_d+5E_s	5E_h+1E_d+8E_s

As can be seen from Table 6, comparing with Hafizul Islam and Biswas,¹⁹ twice hash and point addition operations are reduced in this scheme and one time scalar multiplication operation is added; as a whole, there is little difference in performance between this scheme and Hafizul Islam and Biswas.¹⁹ Comparing with Yang,²⁰ one time hash operation is reduced in this scheme. Comparing with Liao and Hsiao,²¹ one time point addition operation is added, but one time hash and three times scalar multiplication operations are reduced in this scheme. In summary, comparing with other schemes, this scheme has better performance.

In terms of security, Hafizul Islam and Biswas¹⁹ and Liao and Hsiao²¹ do not support two-way authentication. And there is little difference in security between this scheme and Yang.²⁰

Conclusion and future work

In order to guarantee the security of IIoT especially for the resource-constrained environment, an authentication and key agreement mechanism based on implicit certificate is proposed based on OPC UA security model in this article. The implicit certificate is based on ECC cryptosystem. In the process of establishing secure channel, the lightweight ECC encryption algorithm is adopted to ensure the security of data transmission in the communication process. The mechanism is implemented and the test platform shows that this mechanism could be used in resource-constrained environments. In the future work, in order to further validate the feasibility of this scheme in resource-constrained environments, this scheme will be tested in practical applications. Currently, there are some studies on key agreement and authentication mechanism for constrained device in the IEEE 802.15.4 protocol stack.^10,11 Some device based on IEEE 802.15.4 supporting OPC UA has been implemented in our laboratory. The proposed scheme will be considered and additional implementation will be added in platform (such as STM32F103) in the future.

Footnotes

The authors would like to appreciate Zhuang Yuan for her contributions to this work.

Handling Editor: Jing Liu

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research,authorship,and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research,authorship,and/or publication of this article: This work was supported by Chongqing Education Committee Science and Technology Projects (KJ1600405),China;Chongqing Foundation and Frontier Project (cstc2017jcyjAX0235);and Chongqing IoT Industry Common Key Technology Innovation Project (cstc2015zdcy-ztzx70007).

References

OPC Foundation. OPC UA architecture specification: part 1—overview and concepts (Version 1.02), 10 July 2012, https://scadahacker.com/library/Documents/ICS_Protocols/OPCF%20-%20OPC-UA%20Part%201%20-%20Overview%20and%20Concepts%201.02%20Specification.pdf

Huang

Liu

Dongbo

. Research on OPC UA security. In: Proceedings of the 2010 5th IEEE conference on industrial electronics and applications, Taichung, Taiwan, 15–17 June 2010, pp.1439–1444. New York: IEEE.

Cavalieri

Cutuli

. Performance evaluation of OPC UA. In: Proceedings of the 2010 IEEE conference on emerging technologies and factory automation (ETFA), Bilbao, 13–16 September 2010, pp.1–8. New York: IEEE.

Fernbach

Kastner

. Certificate management in OPC UA applications: an evaluation of different trust models. In: Proceedings of the 2012 IEEE 17th conference on emerging technologies & factory automation (ETFA), Krakow, 17–21 September 2012, pp.1–6. New York: IEEE.

Post

Seppälä

Koivisto

Certificate based security at device level of automation system. IFAC Proc Volume 2009; 42(21): 120–124.

Post

Seppälä

Koivisto

. The performance of OPC-UA security model at field device level. In: Proceedings of the 6th international conference on informatics in control, automation and robotics, volume robotics and automation, Milan, 2–5 July 2009, pp.337–341. Porto: INSTICC Press.

Chen

et al . Research of integrity and authentication in OPC UA communication using whirlpool hash function. Appl Sci 2015; 5(3): 446–458.

Verma

Jain

Shrivastava

Performance analysis of cryptographic algorithms RSA and ECC in wireless sensor networks. IUP J Telecommun 2015; 7: 51–65.

Sciancalepore

Piro

Boggia

et al . Public key authentication and key agreement in IoT devices with minimal airtime consumption. IEEE Embed Syst Lett 2017; 9(1): 1–4.

10.

Sciancalepore

. Key management protocol with implicit certificates for IoT systems. In: Proceedings of the 2015 workshop on IoT challenges in mobile and industrial systems, Florence, 18 May 2015, pp.37–42. New York: ACM.

11.

Park

C-S.

A secure and efficient ECQV implicit certificate issuance protocol for the Internet of Things applications. IEEE Sens J 2017; 17(7): 2215–2223.

12.

Nguyen

Zao

. Efficient authentication of resource-constrained IoT devices based on ECQV implicit certificates and datagram transport layer security protocol. In: Proceedings of the 7th symposium on information and communication technology, Ho Chi Minh City, Vietnam, 8–9 December 2016, pp.37–42. New York: ACM.

13.

Schwarz

Borcsok

. A survey on OPC and OPC-UA: about the standard, developments and investigations. In: Proceedings of the 2013 XXIV international symposium on information, communication and automation technologies (ICAT), Sarajevo, 30 October–1 November 2013, pp.1–6. New York: IEEE.

14.

Viega

Chandra

Messier

Network security with OpenSSL. Sebastopol, CA: O’Reilly & Associates, Inc., 2002.

15.

Fan

JZ.

A lightweight WSN authentication and key agreement scheme. Comput Eng 2013; 39(3): 146–151.

16.

Yang

Jiang

JH.

VANETs communication and efficient threshold anonymous authentication scheme. Comput Eng 2015; 41(2): 107–112.

17.

NESSIE Consortium. Portfolio of recommended cryptographic primitives, 27 February 2003, http://www.cryptonessie.org/

18.

Maitra

Sarkar

Gupta

SS.

Factoring RSA modulus using prime reconstruction from random known bits. In: Bernstein

Lange

(eds) Progress in cryptology-AFRICACRYPT 2010. Berlin; Heidelberg: Springer, 2010, pp.82–99.

19.

Hafizul Islam

Biswas

. Improved remote login scheme based on ECC. In: Proceedings of the 2011 IEEE international conference on recent trends in information technology (ICRTIT), Chennai, India, 3–5 June 2011, pp.1221–1226. New York: IEEE.

20.

Yang

XH.

Research on authenticated key agreement protocol based on ECC. Jining, China: Qufu Normal University, 2015.

21.

Liao

Hsiao

CM.

A novel multi-server remote user authentication scheme using self-certified public keys for mobile clients. Future Gener Comp Sy 2013; 29(3): 886–900.
