Abstract

In this article, mixed convection squeezing flow of a nanofluid between parallel disks is considered. The partial differential equations governing the flow problem are converted into coupled system of ordinary differential equation with the help of suitable similarity transforms. Homotopy analysis method is employed to solve the coupled system of ordinary differential equations. The influence of involved parameters, on velocity, temperature, and concentration profile, is presented graphically coupled with detailed discussion. The results for skin friction coefficient and Nusselt and Sherwood numbers are also a part of this study. Numerical solution is also obtained with the help of Runge–Kutta method of order 4. An excellent agreement is found between analytical and numerical solutions. From the results obtained, we observe that the skin friction coefficient decreases with increasing squeeze number for the case of injection and increases with increase in squeeze number for the case of injection at the walls. Furthermore, Nusselt number gets a rise with increment in squeeze number for the case of injection at the wall and a drop in Nusselt number for the case of suction at the wall is observed when there is suction at the wall. Sherwood number is seen to drop quite steeply with higher values of squeeze number for the injection case and a rise in Sherwood number for the suction is observed when there is suction at the wall.

Keywords

Mixed convection squeezing flow nanofluid homotopy analysis method base fluid (water)

Introduction

Mixed convection is the combination of natural and forced convection, in which the buoyancy forces are induced due to the change in fluid density with temperature. Depending on the orientation and heating conditions, concentration and temperature changes are now very important in the mixed convection thermal and mass diffusions. This state occurs for relatively small flow velocity and large temperature and concentration differences. In fact, the buoyancy force acting as a pressure incline in the buoyancy layer changes the velocity, temperature, and concentration distributions and, consequently, the Nusselt and Sherwood numbers between the surface and fluid. However, mixed convection flows are encountered in several industrial applications including nuclear reactors cooled during emergency shutdown, heat exchangers placed in low-velocity environments, electronic devices cooled by fans, and solar central receivers exposed to the wind currents. In mixed convection flows, the combined effect of heat and mass transfer has special significance to engineering-related problems that contain energy from both metal and polymer sheets. Mixed convection on the horizontal surface due to a uniform free stream has been studied by many researchers. Mori¹ considered the buoyancy effects in forced laminar convection flow over a horizontal plate for the weakly buoyant flows by expanding the variables. For the first-order perturbations, he presented numerical solution. The buoyancy effects of horizontal boundary layer flow and heat transfer were reported by Sparrow and Minkowycz,² in which they point out some minor errors in the solution by Mori¹ and provided the solution for larger Prandtl number. Motivated by these facts, notable amount of research exists for mixed convection flow by a stretching surface.

Squeezing flows between two parallel infinite walls is an important area of interest due to its abundant industrial application including injection modeling, compression, polymer processing, squeezed films in power transmission, and the transient loading of mechanical components. Stefan,³ in the 19th century, is the first one to give the idea of squeezing flow in terms of lubrication approximation. After the seminal work done by Stefan, many researchers investigated such flows for different geometries. Recently, the magnetohydrodynamic (MHD) squeezing flow of second-grade fluid between two parallel plates was investigated by Hayat et al.⁴ Qayyum et al.⁵ discussed the unsteady squeezing flow of a Jeffrey fluid between parallel disks. Heat and mass transfer characteristics of squeezing flow of viscous fluid were reported by Mustafa et al.⁶ Munawar et al.⁷ highlighted the three-dimensional squeezing flow in a rotating channel of lower stretching porous wall.

The term “nanofluids” refers to a liquid suspension of small solid particles with sizes typically of 1–100 nm in a base fluid. Choi⁸ initially verified that the inclusion of these nanoparticles in a base fluid enhances the thermal conductivity of the fluids. Common base fluids consist of water, ethylene glycol, oil, and polymer solutions. Nanoparticles are made up of carbides, nitrides, metals (aluminum and copper), or nonmetals (graphite and carbon nanotubes). The size of these nanoparticles plays an important role to enhance heat and mass transfer of the surface and fluid. To highlight the significant effects of Brownian motion and thermophoretic diffusion of nanoparticles, a mathematical model was discussed by Buongiorno.⁹ In Buongiorno’s model, the thermal conductivity and the viscosity are taken to be constant. This model takes into consideration the Brownian motion and the thermophoresis effects which are different from the other models used. Also, Buongiorno’s model does not take into account the shape of nanoparticles or the type of nanoparticles involved. This model is called two-phase model due to the presence of Brownian motion and thermophoresis, that is, the temperature and concentration equations are coupled due to the presence of these two terms. The Cheng–Minkowcz problem for natural convective boundary layer flow of a nanofluid occupying a porous space was considered by Nield and Kuznetsov.¹⁰ Kuznetsov and Nield¹¹ numerically studied the flow of nanofluid past a vertical flat plate. Khan and Pop¹² provided numerical solutions for boundary layer flow of nanofluid over a stretching sheet. Many researchers used Buongiorno’s model to analyze the flow of nanofluids in various geometries. Some relevant studies can be seen in the literature.^13–20 The analytic solutions for the problem considered in Khan and Pop¹² by homotopy analysis method (HAM) were computed by Hassani et al.²¹ Homotopy solutions for squeezing flow of nanofluid between parallel disks have been obtained by Mustafa et al.²² Liao²³ presented a new form of HAM and implemented it on as a novel analysis to the field. Different researchers used BVPh2.0 package to solve the equations of various types.^24,25

It is revealed from the literature survey that there is no study available that considered the mixed convection squeezing flow of a nanofluid between parallel disks. Due to the nonlinearity of the equations corresponding to these problems, an exact solution is unlikely; so, many analytical techniques, such as homotopy perturbation method, variational iteration method, and variation of parameters method, have been developed to approximate the solutions. Highly nonlinear problems such as the ones discussed above are therefore solved using these techniques. One of such techniques is HAM that has been used to solve many abstract problems in recent past. A numerical solution using Runge–Kutta method of order 4 (RK-4) is also obtained. An excellent agreement is found between analytical and numerical solutions.

Mathematical analysis

A two-dimensional axisymmetric MHD flow of a nanofluid between parallel disks distance apart h with magnetic field practiced vertically is proportional to $B_{0} (1 - at)^{1 / 2}$ is taken into account, where the magnetic field is negligible for low Reynold numbers. Incompressible flow of a nanofluid is taken between parallel disks. ${\tilde{T}}_{w}$ and ${\tilde{T}}_{h}$ are the constant temperatures at lower and upper disks, while ${\tilde{C}}_{w}$ and ${\tilde{C}}_{h}$ are nanoparticles concentration at lower and upper disks, respectively. It is here to mention that the water is taken as a base fluid. The upper disk is moving with a velocity $aH / 2 \sqrt{(1 - at)}$ away from the lower disk as shown in Figure 1.

Figure 1.

Schematic diagram of the problem.

Thus, the governing equations for two-dimensional unsteady flow and heat transfer of a viscous fluids are

$\frac{\partial \hat{u}}{\partial r} + \frac{\hat{u}}{r} + \frac{\partial \hat{w}}{\partial z} = 0$ (1)

$\begin{array}{l} \frac{\partial \hat{u}}{\partial t} + \hat{u} \frac{\partial \hat{u}}{\partial r} + \hat{w} \frac{\partial \hat{u}}{\partial z} = - \frac{1}{ρ_{f}} \frac{\partial \tilde{p}}{\partial r} \\ + ν (\frac{\partial^{2} \hat{u}}{\partial r^{2}} + \frac{1}{r} \frac{\partial \hat{u}}{\partial r} - \frac{\hat{u}}{r^{2}} + \frac{\partial^{2} \hat{u}}{\partial z^{2}}) \\ - \frac{σ}{ρ_{f}} B^{2} (t) \hat{u} + \frac{g β_{\tilde{T}}}{ρ_{f}} (\tilde{T} - {\tilde{T}}_{0}) + \frac{g β_{\tilde{C}}}{ρ_{f}} (\tilde{C} - {\tilde{C}}_{0}) \end{array}$ (2)

$\begin{array}{l} \frac{\partial \hat{w}}{\partial t} + \hat{u} \frac{\partial \hat{w}}{\partial r} + \hat{w} \frac{\partial \hat{w}}{\partial z} = - \frac{1}{ρ_{f}} \frac{\partial \tilde{p}}{\partial z} \\ + ν (\frac{\partial^{2} \hat{w}}{\partial r^{2}} + \frac{1}{r} \frac{\partial \hat{w}}{\partial r} + \frac{\partial^{2} \hat{w}}{\partial z^{2}}) \end{array}$ (3)

$\begin{matrix} \frac{\partial \tilde{T}}{\partial t} + \hat{u} \frac{\partial \tilde{T}}{\partial r} + \hat{w} \frac{\partial \tilde{T}}{\partial z} = α (\frac{\partial^{2} \tilde{T}}{\partial r^{2}} + \frac{1}{r} \frac{\partial \tilde{T}}{\partial r} + \frac{\partial^{2} \tilde{T}}{\partial z^{2}}) \\ + τ (D_{B} (\frac{\partial \tilde{C}}{\partial r} \frac{\partial \tilde{T}}{\partial r} + \frac{\partial \tilde{C}}{\partial z} \frac{\partial \tilde{T}}{\partial z}) + \frac{D_{T}}{T_{m}} [{(\frac{\partial \tilde{T}}{\partial r})}^{2} + {(\frac{\partial \tilde{T}}{\partial z})}^{2}]) \end{matrix}$ (4)

$\begin{array}{l} \frac{\partial \tilde{C}}{\partial t} + \hat{u} \frac{\partial \tilde{C}}{\partial r} + \hat{w} \frac{\partial \tilde{C}}{\partial z} = D_{B} (\frac{\partial^{2} \tilde{C}}{\partial r^{2}} + \frac{1}{r} \frac{\partial \tilde{C}}{\partial r} + \frac{1}{r^{2}} \frac{\partial^{2} \tilde{C}}{\partial θ^{2}}) \\ + \frac{D_{T}}{T_{m}} (\frac{\partial^{2} \tilde{T}}{\partial r^{2}} + \frac{1}{r} \frac{\partial \tilde{T}}{\partial r} + \frac{1}{r^{2}} \frac{\partial^{2} \tilde{T}}{\partial θ^{2}}) \end{array}$ (5)

Subject to the auxiliary conditions

$\begin{matrix} {(\hat{u} = 0, \hat{w} = \frac{dh}{dt}) |}_{z = h (t)} \\ {(\hat{u} = 0, \hat{w} = - \frac{w_{0}}{\sqrt{1 - at}}) |}_{z = 0} \end{matrix}$ (6)

$\begin{matrix} {(\tilde{\tilde{T}} = {\tilde{T}}_{h}, \tilde{C} = {\tilde{C}}_{h}) |}_{z = h (t)} \\ {(\tilde{T} = {\tilde{T}}_{w}, \tilde{C} = {\tilde{C}}_{w}) |}_{z = 0} \end{matrix}$ (7)

where $\hat{u}$ and $\hat{w}$ represent the velocity components in r- and z-directions, respectively. $\tilde{C}$ is the nanoparticle concentration, $α$ is thermal diffusivity, $ρ$ is the density, $ν$ is kinematic viscosity, $\tilde{p}$ is pressure, and $C_{p}$ is specific heat. Furthermore, D is the coefficient of mass diffusivity, $D_{B}$ is Brownian motion coefficient, $D_{T}$ is thermophoretic diffusion coefficient, $K_{T}$ is the thermal-diffusion ratio, and $\tilde{T} and T_{m}$ are the temperature and mean fluid temperature, respectively. Furthermore, $τ$ is the dimensionless parameter which describes the ratio of effective heat capacity of nanoparticles to heat capacity of the fluid and w₀ is the suction/injection velocity.

Using the following similarity transform

$\begin{matrix} \hat{u} = \frac{ar}{2 (1 - at)} f' (ζ), \hat{w} = - \frac{aH}{\sqrt{1 - at}} f (ζ), \\ B (t) = B_{0} (1 - at)^{- 1 / 2} \\ ζ = \frac{z {(1 - at)}^{- 1 / 2}}{H}, ϕ (ζ) = \frac{\tilde{C} - {\tilde{C}}_{h}}{{\tilde{C}}_{w} - {\tilde{C}}_{h}}, \\ θ (ζ) = \frac{\tilde{T} - {\tilde{T}}_{h}}{{\tilde{T}}_{w} - {\tilde{T}}_{h}} \end{matrix}$ (8)

into equations (2), (3), (4), and (5) after eliminating the pressure gradient from equations (2) and (3), we finally obtain

$f^{(i v)} - S (η f^{‴} + 3 f^{″} - 2 f f^{‴}) - M^{2} f^{″} + λ θ^{'} + G r ϕ^{'} = 0$ (9)

$θ ″ + SPr (2 f θ' - ζ θ') + PrNb θ' ϕ' + PrNt θ'^{2} = 0$ (10)

$ϕ ″ + SLePr (2 f ϕ' - ζ ϕ') + \frac{Nt}{Nb} θ ″ = 0$ (11)

with the boundary conditions

$\begin{matrix} f (0) = A, f' (0) = 0, θ (0) = 1, \\ Nb θ' (0) + Nt ϕ' (0) = 0 \\ f (1) = \frac{1}{2}, f' (1) = 0, θ (1) = 0, ϕ (1) = 0 \end{matrix}$ (12)

The suction/blowing parameter A, squeeze number S, Hartmann number mixed convection coefficient $λ$ , Grashof number Gr, Brownian motion coefficient Nb, thermophoresis parameter Nt, Lewis number Le, and Prandtl number Pr are defined as

$\begin{matrix} A = \frac{w_{0}}{aH}, S = \frac{a H^{2}}{2 v}, M^{2} = \frac{{aB}_{0}^{2} H^{2}}{v}, \\ λ = \frac{Gr}{R e^{2}}, Gr = \frac{λ β T_{0} x^{3}}{ν^{2} (1 - at)} \\ Nb = \frac{{(ρ c)}_{p} D_{B} ({\tilde{C}}_{w} - {\tilde{C}}_{h})}{{(ρ c)}_{f} ν}, \\ Nt = \frac{{(ρ c)}_{p} D_{T} ({\tilde{T}}_{w} - {\tilde{T}}_{h})}{{(ρ c)}_{f} T_{m} ν}, Le = \frac{ν}{D_{B}} \\ \Pr = \frac{ν}{α} \end{matrix}$ (13)

The skin friction coefficient and local Nusselt and Sherwood numbers are defined as

$C_{fr} = \frac{{τ_{rz} |}_{z = h (t)}}{ρ {(\frac{- aH}{2 (1 - at)})}^{2}}, Nu = \frac{H q_{w}}{K ({\tilde{T}}_{w} - {\tilde{T}}_{h})}, Sh = \frac{H j_{w}}{D_{B} ({\tilde{C}}_{w} - {\tilde{C}}_{h})}$ (14)

where

$\begin{array}{l} τ_{r z} = {μ (\frac{\partial \hat{u}}{\partial z} + \frac{\partial \hat{w}}{\partial r}) |}_{z = h (t)}, q_{w} = - k {(\frac{\partial \tilde{T}}{\partial z}) |}_{z = h (t)}, \\ j_{w} = - D_{B} {(\frac{\partial \tilde{C}}{\partial z}) |}_{z = h (t)} \end{array}$ (15)

With the help of equation (8) we get

$C_{fr} = \frac{\overset{⌣}{F} ″ (1) r^{2}}{H^{2} R e_{r}}, Nu = - \frac{θ' (1)}{{(1 - at)}^{1 / 2}}, Sh = - \frac{ϕ' (1)}{{(1 - at)}^{1 / 2}}$ (16)

$R e_{r} = \frac{raH {(1 - at)}^{1 / 2}}{2 v}$ (17)

Solution procedure for HAM

For this problem, we use the HAM package BVPh2.0 and consider the methodology proposed by Liao.^15,16,23 The initial guesses are

$F_{0} (η) = A + \frac{3}{2} (1 + 2 A) ζ^{2} + (2 A - 1) ζ^{3}$ (18)

$θ_{0} (η) = 1 - ζ$ (19)

$ϕ_{0} (η) = \frac{Nt}{Nb} (ζ - 1)$ (20)

Linear operators are chosen as

$ℓ_{F} = \frac{d^{4} f}{d ζ^{4}}, ℓ_{θ} = \frac{d^{2} θ}{d ζ^{2}} and l_{ϕ} = \frac{d^{2} ϕ}{d ζ^{2}}$ (21)

Above operators satisfy the following linearity conditions

$ℓ_{F} ({\overset{⌢}{A}}_{1} ζ^{3} + {\overset{⌢}{A}}_{2} ζ^{2} + {\overset{⌢}{A}}_{3} ζ + {\overset{⌢}{A}}_{4}) = 0$ (22)

$ℓ_{θ} ({\overset{⌢}{A}}_{5} ζ + {\overset{⌢}{A}}_{6}) = 0$ (23)

$ℓ_{ϕ} ({\overset{⌢}{A}}_{7} ζ + {\overset{⌢}{A}}_{8}) = 0$ (24)

where ${\overset{⌢}{A}}_{i} (i = 1 - 8)$ are constants.

Error analysis and selection of optimal values of convergence-control parameters

Convergence criterion for the series solutions is highly dependent on the involved parameters. Here, we define total error of the system for $\tilde{f}, θ$ , and $ϕ$ to obtain the optimal values of such physical parameters as

$E_{m, 1} (ℏ_{\tilde{f}}) = \frac{1}{K} \sum_{i = 0}^{K} {[N_{\tilde{f}} (\sum_{j = 0}^{m} {\tilde{f}}_{j} (i \overset{⌢}{Δ} x))]}^{2}$ (25)

$E_{m, 2} (ℏ_{θ}) = \frac{1}{K} \sum_{i = 0}^{K} {[N_{θ} (\sum_{j = 0}^{m} θ_{j} (i \overset{⌢}{Δ} x) . \sum_{j = 0}^{m} ϕ_{j} (i \overset{⌢}{Δ} x))]}^{2}$ (26)

$E_{m, 3} (ℏ_{ϕ}) = \frac{1}{K} \sum_{i = 0}^{K} {[N_{ϕ} (\sum_{j = 0}^{m} θ_{j} (i \overset{⌢}{Δ} x) . \sum_{j = 0}^{m} ϕ_{j} (i \overset{⌢}{Δ} x))]}^{2}$ (27)

where $Δ x = 1 / K$ . In order to solve the coupled nonlinear differential equations (9)–(11), we use the MATHEMATICA package BVPh2.0. In the so-called BVPh2.0, we obtain the 12th order of approximations for the momentum, energy, and concentration equations. The minimum squared residual errors at 12th order of approximations are $7.892865954693209 \times 10^{- 22}, 1.442680950954396 \times 10^{- 22}, and 3.27786863734812 \times 10^{- 21}$ for $f (ζ), θ (ζ)$ , and $ϕ (ζ)$ , respectively. Figure 2 is sketched for the total residual error corresponding to the different order of approximations.

Figure 2.

Total residual error versus order of approximations.

The optimal values of these auxiliary parameters for velocity, temperature, and concentration profiles corresponding to the different values of the parameters are given in Tables 1 and 2.

Table 1.

Optimal values of $ℏ_{\tilde{f}}, ℏ_{θ}, and ℏ_{ϕ}$ for different values of the parameters $\Pr = 6.2, Le = 0.1$ for suction case (A > 0).

S	M	$λ$	Gr	Nt	Nb	$ℏ_{F}$	$ℏ_{θ}$	$ℏ_{ϕ}$	Total error of the system
0.05	1	0.5	0.5	0.1	0.1	−0.878	−0.988	−1.075	3.75 × 10⁻⁴
0.1						−1.071	−1.034	−0.915	4.75 × 10⁻⁵
0.15						−1.099	−0.888	−1.028	3.52 × 10⁻⁴
0.2						−0.897	−0.909	−1.179	1.43 × 10⁻³
0.1	0					−0.913	−0.981	−1.094	1.32 × 10⁻⁵
	0.5					−0.913	−0.980	−1.093	1.36 × 10⁻⁵
	2					−1.037	−0.941	−1.044	1.23 × 10⁻⁴
	3					−0.968	−0.888	−1.051	2.46 × 10⁻⁴
	1	0				−1.091	−1.045	−0.903	3.88 × 10⁻⁵
		1				−0.916	−0.974	−1.093	2.15 × 10⁻⁵
		2				−0.933	−0.972	−1.092	2.99 × 10⁻⁵
		3				−0.969	−0.966	−1.084	3.45 × 10⁻⁵
		0.5	0			−1.012	−0.977	−1.090	1.19 × 10⁻⁵
			1			−0.897	−0.972	−1.101	3.44 × 10⁻⁵
			2			−1.133	−0.906	−0.964	2.87 × 10⁻⁴
			3			−1.155	−0.867	−0.977	4.63 × 10⁻⁴
			0.5	0.01		−1.024	−0.994	−1.092	3.28 × 10⁻⁶
				0.02		−1.020	−0.982	−1.083	1.10 × 10⁻⁵
				0.03		−0.923	−0.978	−1.135	1.67 × 10⁻⁵
				0.04		−0.922	−0.971	−1.127	2.36 × 10⁻⁵
				0.1	0.02	−0.873	−0.989	−1.090	3.34 × 10⁻⁴
					0.05	−0.898	−0.979	−1.092	6.72 × 10⁻⁵
					0.08	−0.910	−0.976	−1.091	2.86 × 10⁻⁵
					0.1	−1.071	−1.034	−0.915	4.75 × 10⁻⁵

Table 2.

Optimal values of $ℏ_{\tilde{f}}, ℏ_{θ}, and ℏ_{ϕ}$ for different values of the parameters $\Pr = 6.2, Le = 0.1$ for blowing case (A < 0).

S	M	$λ$	Gr	Nt	Nb	$ℏ_{F}$	$ℏ_{θ}$	$ℏ_{ϕ}$	Total error of the system
0.05	1	0.5	0.5	0.1	0.1	−0.891	−0.825	−1.147	1.07 × 10⁻²
0.1						−0.882	−0.762	−1.196	2.64 × 10⁻²
0.15						−0.874	−0.709	−1.247	5.48 × 10⁻²
0.2						−0.869	−0.663	−1.294	1.02 × 10⁻¹
0.1	0					−0.809	−0.765	−1.218	2.49 × 10⁻²
	0.5					−0.840	−0.764	−1.209	2.54 × 10⁻²
	2					−0.919	−0.752	−1.189	3.06 × 10⁻²
	3					−0.919	−0.710	−1.211	4.75 × 10⁻²
	1	0				−0.901	−0.765	−1.187	2.78 × 10⁻²
		1				−0.862	−0.761	−1.203	2.53 × 10⁻²
		2				−0.826	−0.762	−1.207	2.43 × 10⁻²
		3				−0.806	−0.774	−1.190	2.52 × 10⁻²
		0.5	0			−0.875	−0.772	−1.206	2.37 × 10⁻²
			1			−0.893	−0.740	−1.189	3.44 × 10⁻²
			2			−0.935	−0.671	−1.212	6.05 × 10⁻²
			3			−0.980	−0.596	−1.247	9.43 × 10⁻²
			0.5	0.01		−0.960	−0.890	−1.047	1.55 × 10⁻⁵
				0.02		−0.951	−0.875	−1.058	6.01 × 10⁻⁵
				0.03		−0.943	−0.861	−1.071	1.87 × 10⁻⁴
				0.04		−0.935	−0.848	−1.085	4.95 × 10⁻⁴
				0.1	0.02	−0.875	−0.645	−1.318	3.48 × 10⁻¹
					0.05	−0.873	−0.694	−1.276	7.00 × 10⁻²
					0.08	−0.877	−0.737	−1.229	3.54 × 10⁻²
					0.1	−0.882	−0.762	−1.197	2.64 × 10⁻²

Results and discussion

This section is dedicated to highlight the variations in velocity, temperature, and concentration profiles under the effects of varying parameters involved. The effect of the squeezing parameter S on the velocity profile is discussed in Figure 3, where it can be seen that with an increase in squeeze number S the velocity profile $f' (ζ)$ initially increases for the suction case (A > 0). However, when $ζ$ approaches to 0.5, it starts decreasing for higher value of squeeze number S, but vice versa for the case of injection (A < 0). Physically, it is easy to see, in case of blowing (A < 0) there will be an increase in $h (t)$ which will cause a decrease in velocity and increase in squeeze number. Similarly, in case of suction (A > 0), there will be a corresponding decrease in $h (t)$ which in turn will cause an increase both in velocity and squeeze number. Figure 4 depicts the effect of Hartmann number M on the velocity profile $f' (ζ)$ . For the higher values of Hartmann number M, the velocity profile $f' (ζ)$ initially decreases in magnitude for the suction case (A > 0); however, when $ζ$ approaches the neighborhood of 0.3, it starts increasing in magnitude for the higher values of M, while for blowing flow the behavior of velocity profile $f' (ζ)$ is opposite. The Hartmann number M which describes the strength of Lorentz force due to magnetic field can take any value in the semi-infinite region. The governing equations for the hydrodynamic flow are recovered for $M = 0$ . The velocity increases initially with an increase in S. Since the same mass flow rate is imposed, in order to satisfy the mass conservation constraint, with increased M we would expect that the increase in the fluid velocity in the wall regions will be compensated by a decrease in the fluid velocity near the central region giving rise to a cross-flow behavior.

Figure 3.

Influence of S on $f' (ζ)$ .

Figure 4.

Influence of M on $f' (ζ)$ .

Behavior of velocity profile $f' (ζ)$ under the influence of mixed convection parameter $λ$ is discussed in Figure 5, where it can be seen that for the larger values of $λ$ the radial velocity $f' (ζ)$ initially increases in magnitude for both the suction/injection flow; however, when $ζ$ approaches 0.5, it starts decreasing for the larger values of $λ$ . Figure 6 depicts the outcomes of varying Grashof number Gr on the velocity profile. It is clear that for the larger values of Grashof number Gr the velocity profile $f' (ζ)$ initially decreases in magnitude for both suction and blowing flow; however, when $ζ$ approaches to mid of the variation, that is, $ζ \leq 0.5$ , it starts increasing for larger values of Grashof number Gr. Physically, it is worth mentioning here that the Grashof number is the ratio between buoyancy and viscous forces. When Gr ≫ 1, the viscous force is negligible compared to the buoyancy and inertial forces. When buoyant forces overcome the viscous forces, the flow starts a transition to the turbulent regime.

Figure 5.

Influence of $λ$ on $f' (ζ)$ .

Figure 6.

Influence of Gr on $f' (ζ)$ .

Effect of involved parameters on the temperature profile $θ (ζ)$ is portrayed in Figures 7 –11. Figure 7 depicts the outcomes of varying squeeze parameter S on the temperature distribution. One can easily see that in the case of suction flow, the increase in squeeze parameter S decreases the temperature; however, in the blowing flow, the temperature profile increases with increasing values of S. Figure 8 illustrates the behavior of temperature distribution under the influence of Brownian motion parameter Nb. It is clear that with the increase in Nb the temperature distribution falls rapidly for both the suction and blowing cases. From Figure 9, it is clear that for the suction and blowing flows, the increment in thermophoresis parameter Nt coefficient increases the temperature profile $θ (ζ)$ . It is important to note that parameters Nb and Nt characterize the strengths of Brownian motion and thermophoresis effects. The larger the values of Nb and Nt, the greater will be the strength of the corresponding effects. Thus, Nb and Nt can take any value in the range $[0, \infty]$ . The effect of mixed convection parameter $λ$ and Grashof number Gr is almost like Brownian motion parameter Nb and thermophoresis parameter Nt that can be seen from Figures 8 and 9, respectively.

Figure 7.

Influence of S on $θ (ζ)$ .

Figure 8.

Influence of Nb on $θ (ζ)$ .

Figure 9.

Influence of Nt on $θ (ζ)$ .

Figure 10.

Influence of $λ$ on $θ (ζ)$ .

Figure 11.

Influence of Gr on $θ (ζ)$ .

Physically, the mixed convection parameter depends on the buoyancy force. Therefore, the increase in the mixed convection parameter means an increase in the buoyancy force. An increase in the buoyancy force gives rise to the fluid flow by which the velocity increases and the temperature decreases.

Behavior of concentration profile $ϕ (ζ)$ under the influence of involved physical parameters is presented in Figures 12 –17. The effect of squeeze parameter S on concentration profile is discussed in Figure 12, which illustrates that the concentration profile $ϕ (ζ)$ increases with increase in squeeze number S for suction flow (A > 0); however, for blowing case, the concentration profile decreases with an increase in squeeze parameter S.

Figure 12.

Influence of S on $ϕ (ζ)$ .

Figure 13.

Influence of Le on $ϕ (ζ)$ .

Figure 14.

Influence of Nb on $ϕ (ζ)$ .

Figure 15.

Influence of Nt on $ϕ (ζ)$ .

Figure 16.

Influence of $λ$ on $ϕ (ζ)$ .

Figure 17.

Influence of Gr on $ϕ (ζ)$ .

Figure 13 demonstrates the influence of Lewis parameter Le. The effect of Lewis number is almost similar to the one shown by squeeze number, for both suction (A > 0) and blowing flows (A < 0).

The behavior of Brownian motion parameter Nb on the concentration profile $ϕ (ζ)$ is discussed in Figure 14. It is clear that increasing Brownian motion parameter decreases the concentration profile for suction flow. However, the concentration profile rises rapidly in the blowing case for increasing value of Brownian motion parameter Nb. Effect of thermophoresis parameter Nt on concentration profile $ϕ (ζ)$ is presented in Figure 15.

It is clear that on increasing the thermophoresis parameter Nt the concentration profile $ϕ (ζ)$ increases for the suction flow, while for the blowing flow this behavior is opposite.

Figure 16 reflects the behavior of mixed convection parameter $λ$ on concentration profile $ϕ (η)$ . A rise in concentration profile $ϕ (η)$ exhibits larger values of $λ$ for both suction and blowing flows. Figure 17 depicts the effects of Grashof number Gr on concentration profile. A fall in concentration profile is shown for the higher values of Gr.

Same problem is solved numerically using RK-4. Comparison of analytical and numerical result is presented in Table 3. It can be seen that both numerical and analytical solutions are in outstanding agreement.

Table 3.

Comparison of HAM solution with RK-4.

$ζ$	$f' (ζ)$		$θ (ζ)$		$ϕ (ζ)$
$ζ$	HAM	Numerical	HAM	Numerical	HAM	Numerical
0	0.000000	1.000000	1.000000	1.000000	−0.958122	−0.958121
0.1	0.985561	0.985561	0.891204	0.891204	−0.849991	−0.849990
0.2	0.946814	0.946814	0.787717	0.787717	−0.748382	−0.748382
0.3	0.890302	0.890302	0.688493	0.688493	−0.652075	−0.652075
0.4	0.822228	0.822228	0.592318	0.592318	−0.559680	−0.559680
0.5	0.748556	0.748556	0.497867	0.497867	−0.469713	−0.469713
0.6	0.675107	0.675107	0.403741	0.403741	−0.380623	−0.380623
0.7	0.607650	0.607650	0.308472	0.308472	−0.290806	−0.290806
0.8	0.551990	0.551990	0.210518	0.210518	−0.198595	−0.198595
0.9	0.514058	0.514058	0.108260	0.108260	−0.102259	−0.102259
1.0	0.5	0.5	0	0	0	0

HAM: homotopy analysis method.

Figures 18 –20 show the variations in skin friction coefficient due to magnetic parameter M, mixed convection parameter $λ$ , and Grashof number Gr, respectively, when plotted against squeeze number S. From Figure 18, one can easily observe an inclination in values of skin friction coefficient for increasing squeeze number S for the case of suction flow (A > 0), while a decline can be observed for the blowing flow (A < 0). A rise in skin friction coefficient is also visible for increasing values of magnetic parameter M for suction flow and a fall is seen for the blowing case. In Figure 19, it is clear that a rapid rise in skin friction coefficient is seen for increasing values of mixed convection parameter $λ$ and squeeze number S for both suction and blowing flows, respectively. In Figure 20, a fall is observed in skin friction coefficient following the changes in Grashof number and squeeze number for both suction and blowing flows. The combined effects of Brownian motion parameter Nb, thermophoresis parameter Nt, mixed convection parameter $λ$ , Grashof number Gr, and squeezing parameter S on the local Nusselt numbers are presented in Figures 21 –24.

Figure 18.

Influence of M and S on C_fr.

Figure 19.

Influence of $λ$ and S on C_fr.

Figure 20.

Influence of Gr and S on C_fr.

Figure 21.

Influence of Nb and S on Nu.

Figure 22.

Influence of Nt and S on Nu.

Figure 23.

Influence of $λ$ and S on Nu.

Figure 24.

Influence of Gr and S on Nu.

Figure 21 depicts the behavior of local Nusselt number following the changes in Brownian motion and squeeze numbers. Here, it is clear that for smaller values of Brownian motion Nb, the rate of heat transfer at the upper disk slightly decreases with increasing squeeze number. From Figure 22 it is clear that the inverse behavior is observed for the smaller values of thermophoresis parameter Nt. From Figure 23, one can easily see that the rate of heat transfer at upper disk slightly decreases for larger values of $λ$ . In Figure 24, the rate of heat transfer at the upper disk is opposite to the larger values of Grashof number Gr.

Effects of involved parameters on local Sherwood numbers are presented in Figures 25 –29.

Figure 25.

Influence of Le and S on Sh.

Figure 26.

Influence of Nb on Sh.

Figure 27.

Influence of Nt and S on Sh.

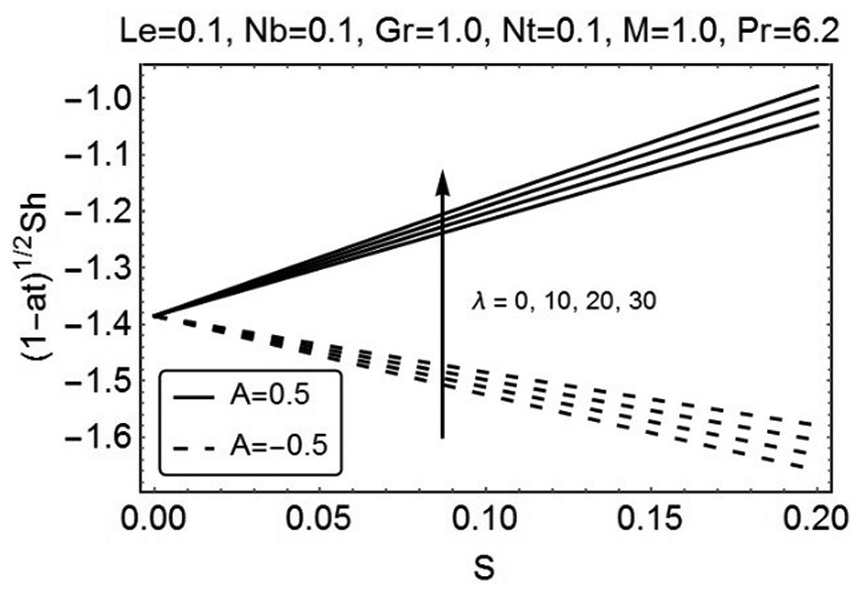

Figure 28.

Influence of $λ$ and S on Sh.

Figure 29.

Influence of Gr and S on Sh.

Figure 25 reflects the influence of Lewis number Le on local Sherwood number. Here, it is clear that the rate of mass transfer at upper disk slightly increases with smaller values of Le for the suction flow, while for the blowing case, it exhibits the inverse variations.

Figure 26 reflects the behavior of Brownian motion parameter Nb. One can easily observe that for smaller values of Nb the rate of mass transfer at upper disk increases rapidly. In Figure 27, this behavior is opposite for the smaller values of thermophoresis parameter Nt. From Figure 28, it can be seen that for larger values of $λ$ , a slight change is observed in local Sherwood number, whereas in Figure 29, for the same variation of Grashof number, a fall is seen at the rate of mass transfer at upper disk.

Conclusion

This article presents a study regarding mixed convection MHD squeezing flow of nanofluid between parallel disks. Base fluid of the channel is considered to be water. The modeled nonlinear differential equations are solved using HAM. An acceptable total error of the system is obtained only at the third order of approximation which shows the efficiency and reliability of the used technique. Effects of all emerging parameters on velocity, temperature, and concentration profiles are plotted with the help of graphical aid. Values of skin friction coefficient, local Nusselt number, and local Sherwood number are also explained graphically. A numerical solution is also obtained using RK-4 under the influence of involved physical parameters to compare the results obtained by HAM and an excellent agreement is observed between the solutions.

Following conclusions are drawn:

The effect of Gr and Nt is same on temperature profile for both suction (A > 0) and blowing cases (A < 0). A rise in temperature is observed. The effect of Nb and $λ$ is opposite for both suction and blowing flows.

For the suction flow, the concentration profile increases with increasing value of Le, while a fall is observed in concentration profile for increasing value of Le for injection case.

For both the suction and blowing flows, the concentration profile decreases with increasing value of S to thermophoresis parameter and Grashof number, while a rise is observed in concentration profile for increasing value of S to Brownian motion parameter and mixed convection parameter.

For increasing values of Hartmann number M, a rise is observed in skin friction coefficient for the suction flow (A > 0) and for blowing flow (A < 0), a fall is evident with rising M.
